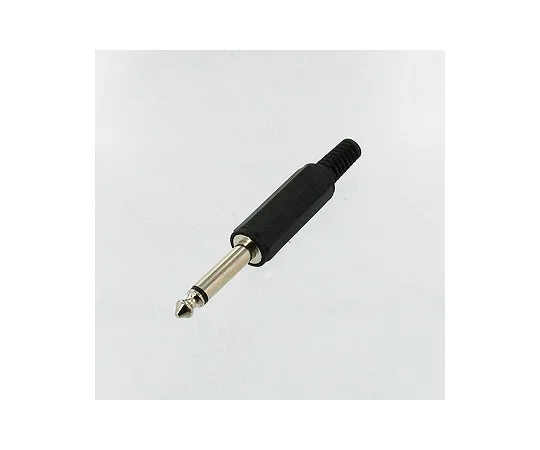

63-3100-17 6.3 phi mono Plug with cable guard WTN03F1081M
Product Description
Product Model: 63-3100-17Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3100-17
Product Brand: Linkman
Features
- A 6.3 mm diameter monaural plug ***d for guitars and authentic audio. The plastic part comes off when you turn it, so please solder it with the electric wire after removing it.
Spec
- Connector shape: 6.3 mm plug
- Stereo/Mono: Mono
- Number of poles: -
- Format: Straight
- Terminal processing: -
- Material: Plastic
- Remarks: -
- □ About Insulation and Non-Insulation
- Panel-mounted RCA pin jacks, phi 3.5 jacks, etc. are divided into "insulated" and "non-insulated" types. Insulated or non-insulated means "whether the GND terminal of the connector contacts the panel" when the connector is attached to the panel.
- For insulated types, the GND terminal of the connector does not connect (contact) with the panel.
- The non-insulated type will be electrically connected if the panel is metallic.
- Insulated connectors are ***d when you don't want to create a "GND (ground) loop."
- *What is a GND loop?
- A loop of wiring, especially a GND line loop, is called a GND loop. When the magnetic flux interchains with the loop, current flows through the GND line, creating a voltage that becomes noise. In such cases, breaking the loop can prevent noise ca***d by interlocking magnetic flux.
