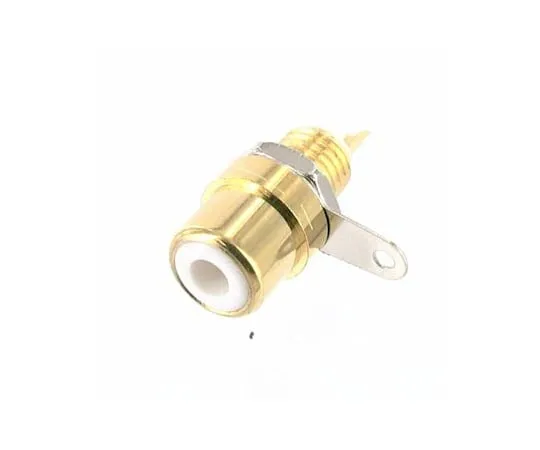

63-3099-99 RCA Jack White 6.1 phi Hole for Panels, Gold-Plated, Non-Insulated WTN20F6213GW
Electronic/Electrical Parts and Controll Equipments

63-3099-99 RCA Jack White 6.1 phi Hole for Panels, Gold-Plated, Non-Insulated WTN20F6213GW

model: 63-3099-99
brand: Linkman

Product Description

Product Model: 63-3099-99Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3099-99
Product Brand: Linkman

Features

  • Insulation and Non-Insulation
  • Panel mounting type RCA pin jacks, φ3.5 jacks, terminals, etc. are available in "Insulation Type" and "Non-Insulation Type."
  • When this jack/terminal is attached to a metal panel, it indicates whether or not the GND terminal side is conductive to the panel.
  • In the case of the insulated type, the GND terminal of the jack/terminal is not electrically conductive to the metal panel.
  • In the non-insulated type, the metal panel and GND terminal are electrically connected.
  • Use insulated connectors when you do not want to create a GND (ground) loop.
  • Also, the speaker output may not be GND on the -side, and since a large current flows, it is recomm***ed to *** an insulation type that does not drop on the panel.
  • Generally, the input terminal of the RCA is not shared with the chassis (panel) GND.
  • * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop."
  • If you experience symptoms such as noise contamination or hum, *** an insulated mold to cut the GND loop.

Spec

  • Connector shape: Jack
  • Color: White (coloring paint)
  • Format: Straight
  • Terminal Treatment: Gold Plating
  • Materials: Brass (body), Copper (solder terminals)
  • Mounting diameter: phi 10 mm
  • Remarks: For mounting panels
