Spec

• Filtration area, cm

  ²

  : 17.7
• Diameter, cm (inch): 6.9 (2.7)
• Support material: Polypropylene
• Seal material: Fluoroelastomer
• Device material: Polycarbonate
• Vent cap material: PVDF
• Material: Cellulose mixed ester
• Filter brand name: Milligard
• Brand name: Optiscale
• Form: Capsule
• Connection, Inlet/outlet: 19mm (3/4in.) sanitary flange/6mm (1/4in.) hose port
• Quantity/box: 3

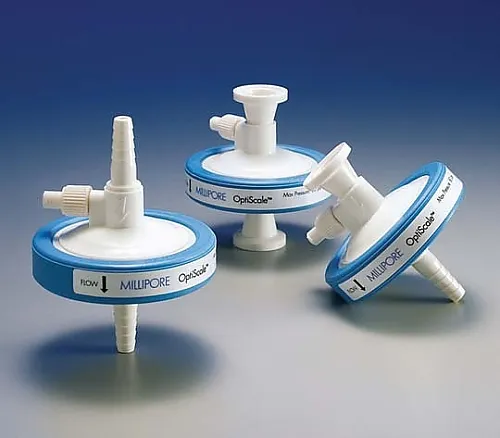

• Overview: OptiScale capsule filter Milligard 1.2/0.5μm 3/4in. TC-1/4in. HB
• Product name: OptiScale disposable capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Nominal bore diameter, μm: 1.2 / 0.5
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C
• Sterilization: Autoclave sterilization at 121 ℃ for 60 minutes; in-line steam sterilization impossible
• Potassium permanganate reduced substance: After flushing by following water, comply with USP Oxidizable Substances Test ? 100mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
