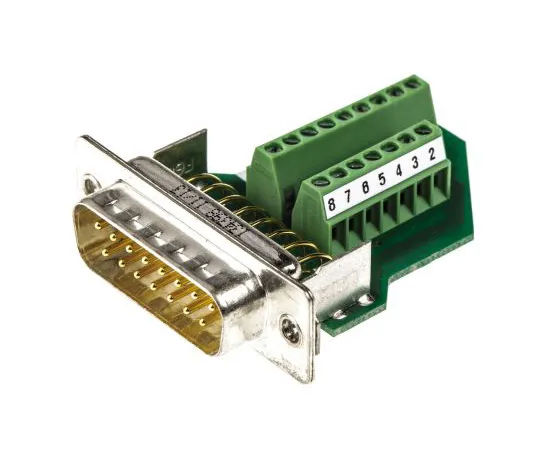

63-4831-23 Phoenix Contact VS-15 Series 15 Way Straight Male Screw Terminal D-sub Connector 1688078
model:
63-4831-23
brand:
Phoenix Contact
Product Description
Product Model: 63-4831-23Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-4831-23
Product Brand: Phoenix Contact
Features
- Phoenix Variosub rewirable D-Sub Connectors. A range of rewireable plug connectors specially designed for data technology in an industrial environment The connectors are suitable for applications requiring high degree of protection to high temperature or mechanical stress Push-pull locking mechanism Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of *** and re-*** Up to IP67 protection rating and optional EMC protection
Spec
- Quantity：1piece
- G***er : Male
- Number of Contacts : 15
- Body Orientation : Straight
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Housing Material : PBT
- Current Rating : 5A
- Voltage Rating : 60 V
- Dimensions : 39.3 x 12.6 x 40.8mm
- Mounting Type : Panel Mount
- Contact Size : 2
- Series : VS-15
- Depth : 40.8mm
- Minimum Operating Temperature : -20°C
- CODE No.:493-2298
