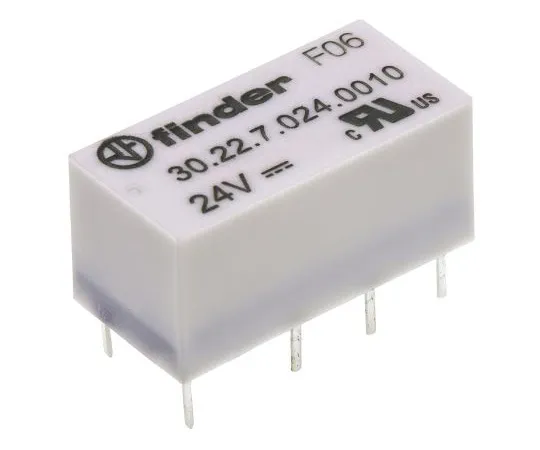

63-4831-04 Finder30 Series DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2A 30.22.7.024.0010
Product Description
Product Model: 63-4831-04Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-4831-04
Product Brand: Finder
Features
- 30 Series - 30.22. Wash tight Minimum switching load: 10mW Rated voltage: 125Vac Contact material: AgNi + Au Operating temperature range: -40 to +85°C Dimensions: H11.4, W10.1, D20.3mm
Spec
- Quantity：1piece
- Coil Voltage : 24V dc
- Coil Power : 200mW
- Coil Resistance : 2.88 kΩ
- Isolation Coil To Contact : 1.5kV ac
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 2A
- Terminal Type : Through Hole
- Number of Poles : 2
- Maximum Switching Voltage AC : 125V ac
- Height : 11.4mm
- CODE No.:492-6603
