Features

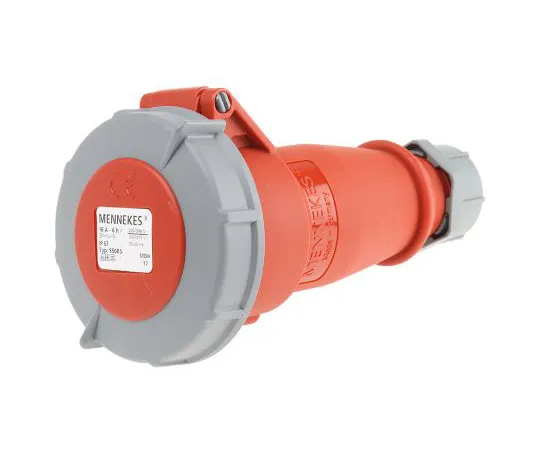

• Mennekes AM-TOP 16 Amp and 32 Amp IP67 Cable Mount Connectors. From Mennekes, the AM-TOP series of IP67 CEE industrial cable mount connectors are robust, reliable and easy to connect. Constructed from a toughened Amaplast plastic, these watertight sockets feature an easy open and closing hinged lid providing protection for the sockets inner contact apertures when not in ***. A tight rubber seal on the inner lid and a secure bayonet locking ring system ensures a waterproof seal. A rugged cable gland at the rear with integrated strain relief provides extra protection and prevents cable kinking. Ergonomically designed the AM-TOP series of BS4343 connectors perform exceptionally well in the most demanding environments. What is Amaplast ?. Amaplast is a superior quality, toughened thermoplastic material with excellent characteristics. Making them virtually unbreakable. The key points are;. Abrasion resistant Self-extinguishing Heat resistant Resistant to cold temperatures Wear resistant Good electrical insulation. Environmental Protection – IP Rating. Mennekes AM-TOP industrial IP67 connectors are designed in accordance with BS EN 60529. The IP rating is composed of two numbers. The first number refers to protection from solid matter, the second number for protection against liquids. The higher the number the better the protection. See technical datasheets for full definitions. Colour Coding. CEE connectors have an industry standard colour coding in compliance with BS EN 60309-2 / BS4343 and IEC 309 Colour coding refers to a connectors rated voltage. Violet, 20 V to 25 V White, 40 V to 50 V Yellow, 100 V to 130 V Blue, 200 V to 250 V Red. 380 V to 480 V Black, 500 V to 1000 V. Features and Benefits. Single part body Screw terminals for simple connection Rubber seal inside the inner lid for extra protection. Bayonet locking ring ensuring a water tight seal. Cable gland and sealing for extra protection Integral cable strain relief preventing kinking. Applications. Ship yards and ports: Docks, piers and boat moorings. Connections exposed to rough seas and flooding Heavy Industry: Steel mills, foundries, where connections are exposed to dust and metallic particles. Entertainment and sports: Connections on lighting and filming equipment exposed to rain, mud, and snow. Construction sites: Outdoor sites, connectors left in damp conditions transformers and generators Food industry: Locations where washing down of equipment is imperative. Agriculture: Outdoor installation pumping on tractors and slurry trucks, pumps for animal feed. O ;A. Q What are the advantages of AM-TOP IP67 industrial power Connectors over similar CEE connectors ? A: AM-TOP IP67 industrial power connectors are designed with a one part construction. Robustly designed with a simple screw connection for rapid connection. With an added integral rubber gasket in the lid and bayonet lock ring for a water tight seal. Q Are there any mating plugs of accessories available ? Connector (socket) ; 679-6946 679-6946 mates with plug ; 679-6943 679-6943 Connector (socket) ; 492-6007 492-6007 mates with plug ; 492-5846 492-5846 Connector (socket) ; 492-5868 492-5868 mates with plug ; 492-5824 492-5824 Connector (socket) ; 492-6029 492-6029 mates with plug ; 492-5852 492-5852 Connector (socket) ; 492-6035 492-6035 mates with plug ; 492-5969 492-5969 Connector (socket) ; 492-5997 492-5997 mates with plug ; 492-5830 492-5830 Connector (socket) ; 492-5874 492-5874 mates with plug ; 492-5953 492-5953 Connector (socket) ; 492-6041 492-6041 mates with plug ; 492-5975 492-5975 Connector (socket) ; 492-6057 492-6057 mates with plug ; 492-5891 492-5891
