Features

• For appropriate wire wrapping see part number < 209-4798') 209-4798/

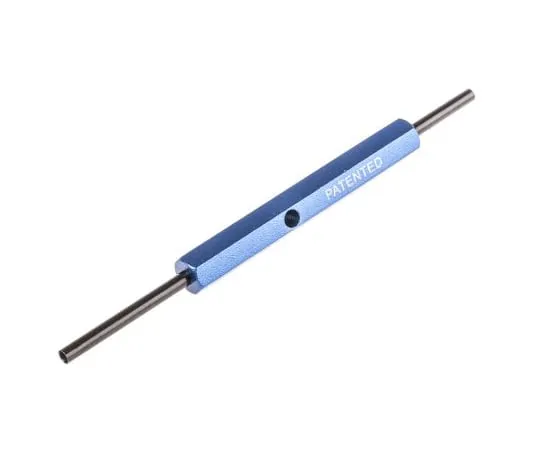

• Stripping, wrapping and unwrapping tools
• Combination of wire stripping, wrapping and unwrapping manual tools designed for stripping, wrapping and unwrapping wires 30 awg tool is ideal for *** with 0.025 "x 0.025" (0.63 x 0.63 mm) 0.85 mm diagonal terminal pins. 26 awg tool is ideal for 0.03 "x 0.06" (0.76 x 1.52 mm) or 0.045 "x 0.045" (1.14 x 1.14 mm) terminal pins
• Usage: Using a cutting blade at the center of the tool, strip approximately 25 mm of insulation from the wire, insert into the 90° b*** of the wrapping bit of the wire, place the bit over the terminal pin, rotate the tool clockwise, and begin wrapping.
• The first rotation of the modified wrap includes insulation as protection against vibration.
• Unwrapping method: Place the bit over the wrapped connection and rotate counterclockwise until the wire comes off.
