Spec

• Filtration area, cm

  ²

  : 17.7
• Filter bore diameter, μm: 0.5 / 0.2 / 0.22
• Diameter, cm (inch): 6.9 (2.7)
• Length, cm (inch): 7.4 (2.91)
• Support material: Polypropylene
• Seal material: Fluoroelastomer
• Device material: Polycarbonate
• Pre-filter material: Cellulose mixed ester
• Vent cap material: PVDF
• Material: Cellulose mixed ester; hydrophilic PVDF
• Filter brand name: Durapore(R)
• Brand name: Optiscale
• Main application: Laboratory Filtration
• Form: Capsule
• Connection, Inlet/outlet: 19mm (3/4in) sanitary flange
• Quantity/box: 3
• Overview: OptiScale Durapore multimedia 0.5/0.2/0.22μm TC/TC

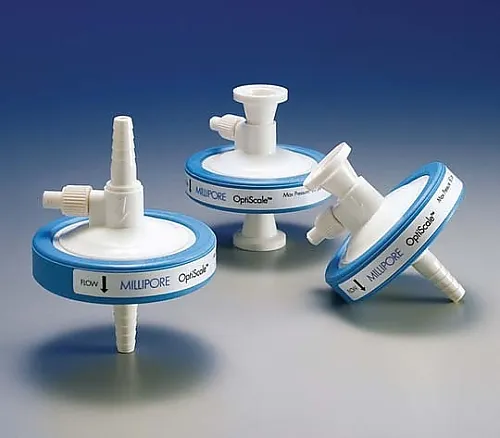

• Product name: OptiScale disposable capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C
• Maximum differential pressure, kPa (psid): 552 (80) at 25℃
• Wettability: Hydrophilic
• Sterilization: 3 times of autoclave sterilization at 123 ℃ for 60 minutes
• Sterility: No sterilization
• Potassium permanganate reduced substance: After flushing by following water, comply with USP Oxidizable Substances Test ? 100mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
