Spec

• Filtration area, cm

  ²

  : 50
• Filter bore diameter, μm: 0.22
• Hold-up volume, mL: 3.2
• Width, cm (inch): 3 (1.2)
• Minimum operation amount, mL: 15
• Length, cm (inch): 18.8 (7.4)
• Screen material: Polypropylene
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Filter code: GVPP
• Filter brand name: Durapore(R)
• Brand name: Pellicon
• Main application: Protein Purification;Analytical Sample Prep
• Quantity/box: 1

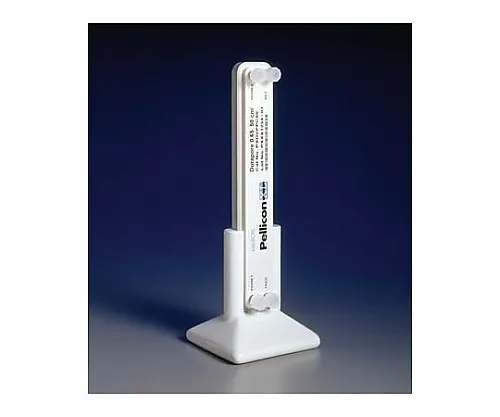

• Overview: Pellicon XL filter module Durapore 0.22μm 50cm

  ²

• Product name: Pellicon XL device
• pH range: 1.5 - 9 when continuing, 1 - 11 when cleaning
• Screen Type: C
• Filter type: Precise filtration
• Cycle flow rate, L/min: 0.03?0.05
• Maximum input pressure, kPa (psi): 552 (80) @ 50


  °C
• Maximum transmembrane pressure difference (normal direction), kPa (psig): 276 (40)
• Total extract: The extractables level was equal to or less than 7.5


  mg per device after a water flush.
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
