Spec

• Filtration area, cm

  ²

  : 50
• Hold-up volume, mL: 3.2
• Width, cm (inch): 3 (1.2)
• Minimum operation amount, mL: 15
• Length, cm (inch): 18.8 (7.4)
• Screen material: Polypropylene
• Device material: Polypropylene
• Material: Regenerated cellulose
• Filter code: PLCCC
• Brand name: Pellicon
• Main application: Protein Purification;Analytical Sample Prep
• Package: Wettability, Preservation medium
• Quantity/box: 1

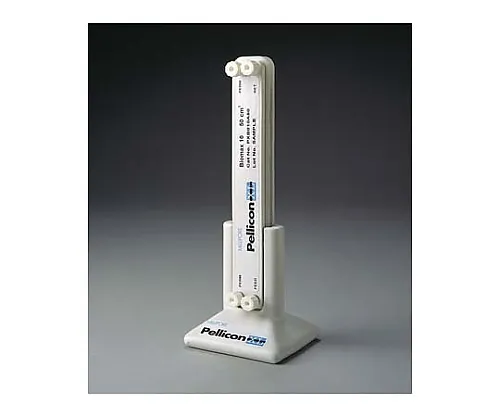

• Overview: Pellicon XL ultrafiltration module Ultracel 5kDa 0.005m

  ²

• Product name: Pellicon XL device
• NMWL, kDa: 5
• pH range: 2?12
• Screen Type: C
• Filter type: Ultrafiltration
• Cycle flow rate, L/min: 0.03?0.05
• Maximum input pressure, kPa (psi): 552 (80) @ 50


  °C
• Maximum transmembrane pressure difference (normal direction), kPa (psig): 276 (40)
• Total extract: The extractables level was equal to or less than 7.5


  mg per device after a water flush.
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
