Electronic/Electrical Parts and Controll Equipments

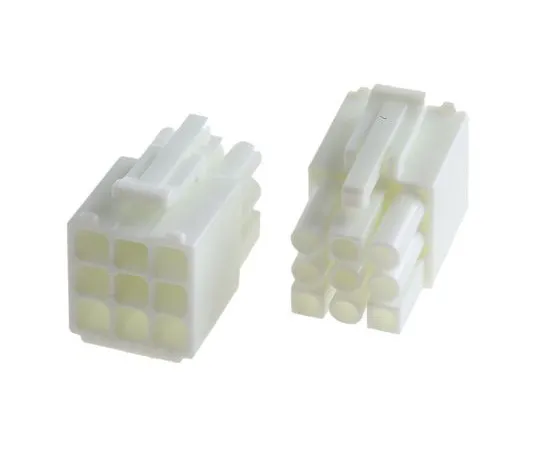

63-4827-03 JST EL Male Connector Housing, 3 Row ELP-09V
Product Description
Product Model: 63-4827-03Product Brand: JST Features Co […]
Contact Us
Product Details
Product Model: 63-4827-03
Product Brand: JST
Features
- Compliant with UL, CSA, TUV Electrical Appliance and Material Safety Act (spatial / creepage distance for insulating material). JST EL Connector Housing. The EL range of connector housings from JST have a 4.5mm pitch. The contacts are easily inserted and installed into the connector housings and due to the housings wide surface area, a safe and smooth connection can be maintained when mating, even if mechanical distortion occurs. Features and Benefits. 4.5mm pitch 2 to 15 circuits Natural colour Wire to wire configurations and fittings Locking lances ensure the contact is correctly installed and locked in Highly durable due to slit in housing arm lock mechanism
Spec
- Quantity：1bag(10pieces)
- Number of Rows : 3
- G***er : Male
- Series : EL
- For Use With : 4.5 mm Disconnectable Crimp Wire-to-Wire Connector
- Length : 14.8mm
- Depth : 24.6mm
- Housing Material : Nylon
- CODE No.:490-6435
