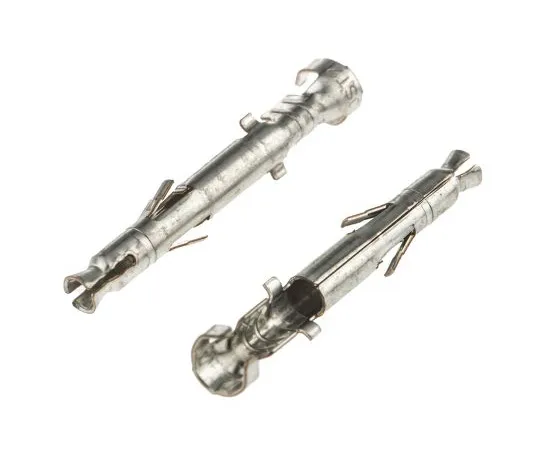

63-4826-85 JST EL Female Crimp Terminal Contact 20AWG LLF-01T-P1.3E LLF-01T-P1.3E
Product Description
Product Model: 63-4826-85Product Brand: JST Features UL […]
Contact Us
Product Details
Product Model: 63-4826-85
Product Brand: JST
Features
- UL, CSA, TUV, Electrical Safety Law Compliance (Spatial Distance and Creeping Distance of Insulators)
- Relay Connector EL Contact/Crimping Pliers
- The contacts for the compact EL connector can be easily inserted into the connector housings
- The plug housing and the receptacle housing can be smoothlymAted even if they are mechanically distorted
- Features; Benefits
- Easy insertion and secure installation of contacts
- A smooth connection even when pried duringmAting
- Durable arm lock mechanism
- Two contact styles
- Interchangeability with ML connector
Spec
- Quantity：1bag(50pieces)
- G***er : Female
- For Use With : EL Connector Housing
- Series : EL
- Minimum Wire Size mm² : 0.1mm²
- Termination Method : Crimp
- Minimum Wire Size AWG : 26AWG
- Maximum Wire Size AWG : 20AWG
- Maximum Contact Resistance : 10mΩ
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +90°C
- CODE No.:490-6249
