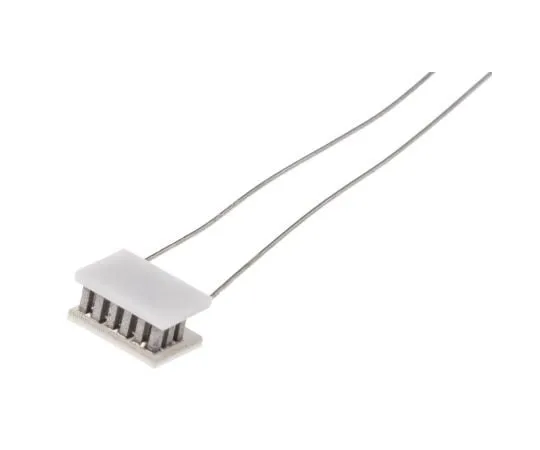

63-4825-85 Peltier Module, 0.7W, 800mA, 1.4V, 6 x 4mm ET-011-05-15-RS
Product Description
Product Model: 63-4825-85Product Brand: Adaptive Featur […]
Contact Us
Product Details
Product Model: 63-4825-85
Product Brand: Adaptive
Features
- Thermoelectric Cooler Modules, Adaptive. The Thermoelectric modules utilise the Peltier phenomenon principle to pump heat when voltage is applied. Effective cooling power from mW to a hundred of Watts Up to 150˚C continuous operation Modules can be bonded using heat sink bonder Applications in refrigeration and power generation Silicone sealed options
Spec
- Quantity：1piece
- Maximum Cooling Capacity : 0.7W
- Maximum Temperature Difference : +73K
- Maximum Current : 800mA
- Maximum Voltage : 1.4V
- Active Area : 6 x 4mm
- Active Area Length : 6mm
- Active Area Thickness : 3mm
- Active Area Width : 4mm
- CODE No.:490-1216
