Electronic/Electrical Parts and Controll Equipments

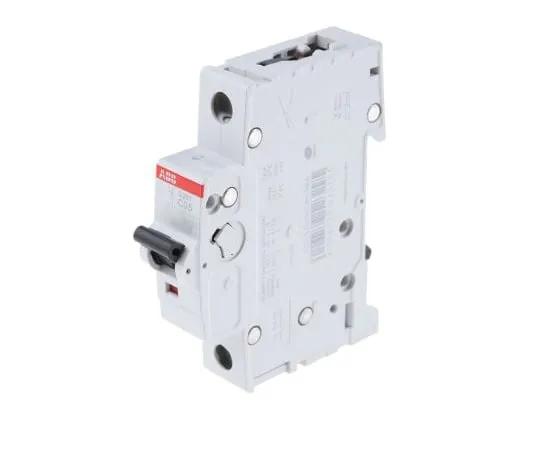

63-4824-73 ABB System M Pro S200 MCB Mini Circuit Breaker 1P, 500 mA, 6 kA, Curve C 2CDS251001R0984 - S201C0.5
Product Description
Product Model: 63-4824-73Product Brand: ABB Features DI […]
Contact Us
Product Details
Product Model: 63-4824-73
Product Brand: ABB
Features
- DIN VDE 0641, part 11, IEC 60898, EN 898, IEC 60947-2. Automatic circuit breakers, S 200-C series, 6kA. Automatic circuit breakers, C-characteristic One, two, three and four pin versions available Finger and overhand-safe terminals to DIN 50 274 (VDE 0660, part 514) Possible to connect one, several and fine wire conductors, varying conductor cross-sections possible Application: industrial installations, large buildings, motors and florescent lamps Universal signal contact/auxiliary switch (1 changer) under stock no. ; 488-6448 488-6448 supplied separately
Spec
- Quantity:1piece
- Range : System M Pro
- Series : S200
- Number of Poles : 1
- Current Rating : 500 mA
- Tripping Characteristics : Type C
- Rated AC Voltage : 253 V
- Rated DC Voltage : 72V
- Breaking Capacity : 6 kA
- Length : 88mm
- Width : 17.5mm
- Depth : 75.8mm
- CODE No.:488-6353
