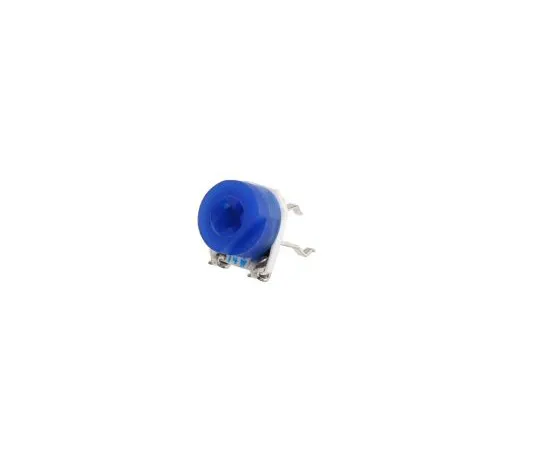

63-4824-68 10kΩ Through Hole Trimmer Potentiometer 0.2W Top Adjust Bourns 3306 Series 3306P-1-103
Product Description
Product Model: 63-4824-68Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4824-68
Product Brand: Bourns
Features
- Cermet 3306P Top Adjust. Bourns® 3306F Series 6mm Round Trimpot® Trimming Potentiometer. Cross slot adjustment Horizontal mounting system Dust / splash resistant covers PC board stand-off's and retention feature Lead-free terminals
Spec
- Quantity：1bag(10pieces)
- Maximum Resistance : 10kΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.2W
- Series : 3306
- Termination Style : Pin
- Tolerance : ±25%
- Temperature Coefficient : ±250ppm/°C
- Length : 6.81mm
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +100°C
- CODE No.:488-5338
