Spec

• Filtration area, cm

  ²

  : 500
• Filter bore diameter, μm: 0.1
• Processing capacity, L: 50
• Diameter, cm (inch): 7.6 (3.0)
• Length, cm (inch): 11 (4.2)
• Support material: Polycarbonate
• Device material: Polycarbonate
• Vent cap material: PVDF
• Material: Hydrophilic PVDF
• Filter brand name: Durapore(R)
• Brand name: Millipak
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Stacked disc
• Connection, Inlet/outlet: 14mm (9/16in.) hose port
• Quantity/box: 3

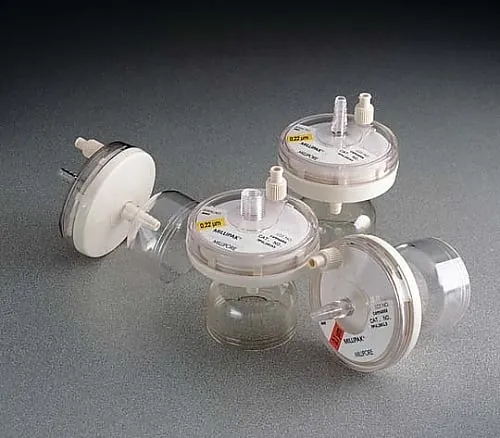

• Overview: Millipak 100 filter unit 0.1μm gamma compatible 9/16in. HB/HB
• Product name: Millipak-100 filter unit
• Bubble point, 23 °C:


  483kPa (70psig) water-wet and air
• Maximum input pressure, kPa (psi): 517 (75) @ 25


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 414 (60) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 123 ℃; reverse direction - 69 (10) @ 25 ℃
• Flow rate, L/min: 3.8 @245


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization at 123℃ for 90 minutes for 3 times; 45 kilogray (4.5 Megarad) gamma irradiation compatible; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Potassium permanganate reduced substance: After flushing by following water, comply with USP Oxidizable Substances Test, ?200mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
