Spec

• Filtration area, cm

  ²

  : 300
• Filter bore diameter, μm: 0.22
• Processing capacity, L: 30
• Support material: Polycarbonate
• Device material: Polycarbonate
• Vent cap material: PVDF
• Material: Hydrophilic PVDF
• Filter brand name: Durapore(R)
• Brand name: Millipak
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Stacked disc
• Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange/6mm (1/4in.) hose port
• Quantity/box: 1

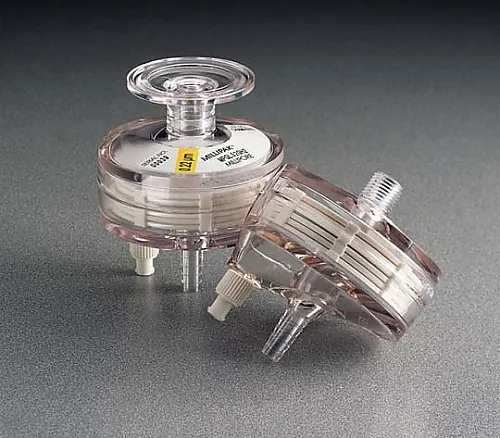

• Overview: Millipak 60 Filling Machine filter unit 0.22μm 1-1/2in. TC-1/4in. HB
• Product name: Millipak-60 filter unit
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): 517 (75) @ 25


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 414 (60) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 123 ℃; reverse direction - 69 (10) @ 25 ℃
• Flow rate, L/min: 7.6 @ 290


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization at 123℃ for 90 minutes for 3 times; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Potassium permanganate reduced substance: After flushing by following water, comply with USP Oxidizable Substances Test, ?200mL
