Spec

• Filtration area, cm

  ²

  : 500
• Filter bore diameter, μm: 0.45
• Support material: Polysulfone
• Seal material: Silicone
• Device material: Polysulfone
• Material: Hydrophilic PVDF
• Filter brand name: Durapore(R)
• Brand name: Millidisk
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Stacked disc
• Quantity/box: 3
• Overview: Millidisk cartridge 10-stack 0.45μm, hydrophilicity

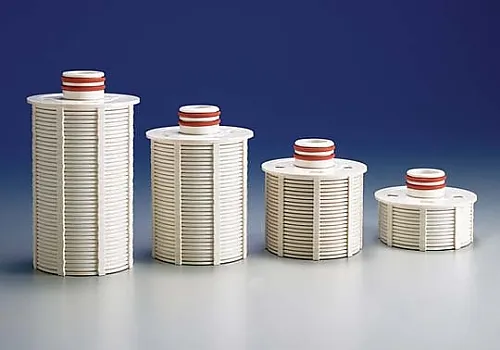

• Product name: Millidisk 10 cartridge filter
• Cartridge code: Code M (2-118) O-ring
• Design of stack: 10
• Bubble point, 23 °C:


  179kPa (26psig), wetted in water and air
• Maximum input pressure, kPa (psi): Normal direction - 4.1 (60) @ 25 ℃; 1.7 (25) @ 80 ℃; 0.35 (5) @ 123 ℃; reverse direction - 0.7 (10) @ 25 ℃
• Maximum differential pressure, kPa (psid): Normal direction - 414 (60) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 123 ℃; reverse direction - 69 (10) @ 25 ℃
• Flow rate, L/min: 38 @ 350


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: 5 times of SIP at 135℃ for 60 minutes; 5 times of autoclave sterilization at 126 ℃ for 60 minutes
• Total extract: The extractables level was equal to or less than 2.5


  mg per sterilized device after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: After flushing by following water, comply with USP Oxidizable Substances Test, ?200mL
