Spec

• Filtration area, cm

  ²

  : 2000
• Filter bore diameter, μm: 0.22
• Support material: Polysulfone
• Seal material: Silicone
• Device material: Polysulfone
• Material: Hydrophilicity/hydrophobicity PVDF
• Filter brand name: Durapore(R)
• Brand name: Millidisk
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Stacked disc
• Quantity/box: 3
• Overview: Millidisk barrier filter 0.22μm, hydrophilicity/hydrophobicity

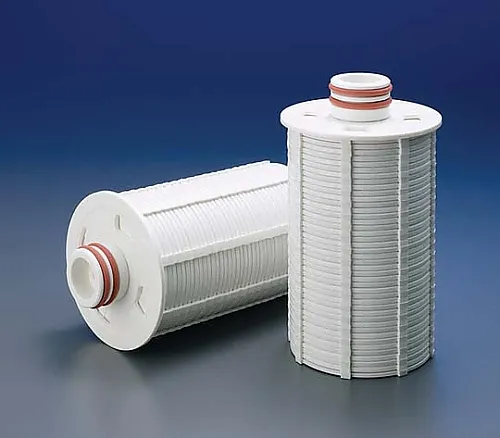

• Product name: Millidisk barrier cartridge filter
• Cartridge code: Code M (2-118) O-ring
• Design of stack: 40
• Bubble point, 23 °C:


  128kPa (18.5psig), with 70//30 % IPA water
• Maximum input pressure, kPa (psi): Normal direction - 4.1 (60) @ 25 ℃; 1.7 (25) @ 80 ℃; 0.35 (5) @ 123 ℃; reverse direction - 0.7 (10) @ 25 ℃
• Maximum differential pressure, kPa (psid): Normal direction - 414 (60) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 123 ℃; reverse direction - 69 (10) @ 25 ℃
• Flow rate, L/min: 7.6 @ 100


  kPa ΔP
• Sterilization: 4 times of SIP at 135℃ for 60 minutes; 4 times of autoclave sterilization at 126 ℃ for 60 minutes
