Spec

• Filtration area, cm

  ²

  : 1500
• Filter bore diameter, μm: 0.22
• Support material: Polysulfone
• Seal material: Silicone
• Device material: Polysulfone
• Material: Hydrophobicity PVDF
• Filter brand name: Durapore(R)
• Brand name: Millidisk
• Main application: Laboratory Filtration
• Package: Easy open bag
• Form: Stacked disc
• Quantity/box: 1

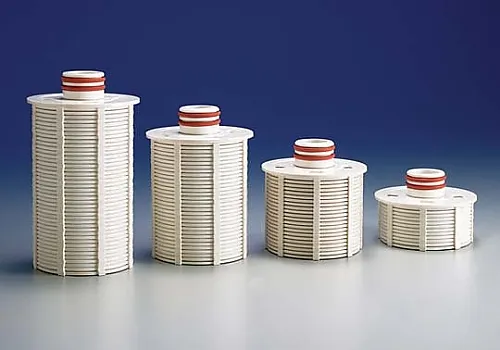

• Overview: Millidisk cartridge 30-stack 0.22μm, hydrophobicity
• Product name: Millidisk 30 cartridge filter
• Cartridge code: Code M (2-118) O-ring
• Design of stack: 30
• Bubble point, 23 °C:


  124kPa (18psig) 60//40% IPA/water
• Maximum input pressure, kPa (psi): Normal direction - 4.1 (60) @ 25 ℃; 1.7 (25) @ 80 ℃; 0.35 (5) @ 123 ℃; reverse direction - 0.7 (10) @ 25 ℃
• Maximum differential pressure, kPa (psid): Normal direction - 414 (60) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 123 ℃; reverse direction - 69 (10) @ 25 ℃
• Wettability: Hydrophobicity
• Sterilization: 5 times of SIP at 135℃ for 30 minutes; 5 times of autoclave sterilization at 126 ℃ for 60 minutes
• Total extract: The extractables level was equal to or less than 7.5


  mg per sterilized device after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
