Spec

• Filtration area, m

  ²

  : 0.18
• Filter bore diameter, μm: 0.45
• Length, Inch (cm): 4 (10)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Filter brand name: Durapore(R)
• Brand name: Optiseal
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 6

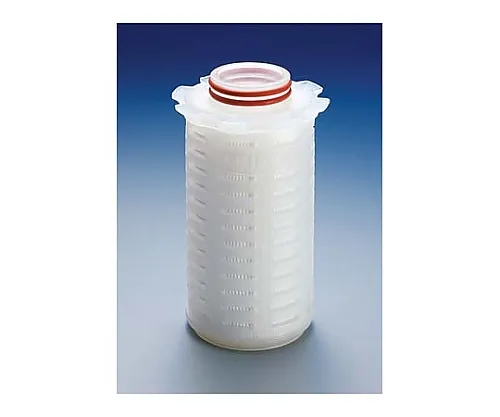

• Overview: Optiseal Durapore cartridge filter, 0.45μm
• Product name: Optiseal cartridge filter
• Air diffusion flow rate, 23 °C:


  4mL/min @ 150kPa (22psig), moisted in water
• Cartridge code: Double O-ring (2-123), with hold-down tab
• Bubble point, 23 °C:


  193kPa (28 psig) air with water
• Maximum input pressure, kPa (psi): Forward


  - 5.5 (80) @ 25


  °C; 3.5 (50) @ 80


  °C; 0.35 (5) @ 121


  °C; Reverse


  - 3.5 (50) @ 25


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) @ 25 ℃; 345 (50) @ 80 ℃; 34 (5) @ 121 ℃; reverse direction - 345 (50) @ 25 ℃
• Wettability: Hydrophilic
• Sterilization: 30 times of in-line steam sterilization at 135℃ for 30 minutes; 10 times of autoclave sterilization at 126 ℃ for 30 minutes
• Total extract: The extractables level was equal to or less than 10


  mg per 4-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 500mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
