Spec

• Filtration area, cm

  ²

  : 500
• Filtration area, m

  ²

  : 0.05
• Filter bore diameter, μm: 0.2
• Length, Inch (cm): 1 (2.5)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophobicity PTFE
• Filter brand name: Aervent
• Brand name: Optiseal
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 2

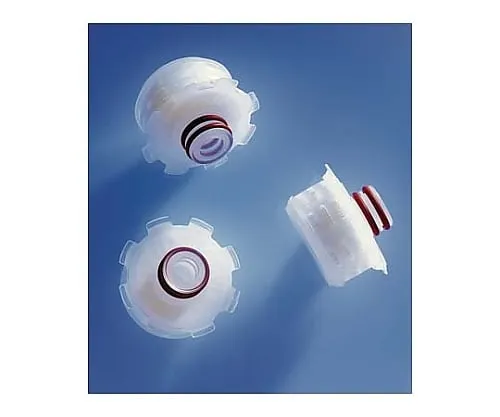

• Overview: Optiseal-M Aervent cartridge filter 0.2μm, hydrophobicity
• Product name: Optiseal-M cartridge filter
• Cartridge code: Code M (2-118) O-ring
• Bubble point, 23 °C:


  110kPa (16psig) 70/30% IPA/water
• Maximum input pressure, kPa (psi): Normal direction - 5.5 (80) @ 25 ℃; 1.7 (25) @ 80 ℃; 0.35 (5) @ 135 ℃; reverse direction - 4.1 (60)
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 135 ℃; reverse direction - 414 (60)
• Wettability: Hydrophobicity
• Sterilization: 80 times of in-line steam sterilization at 135 ℃ for 30 minutes (normal direction 40 times/reverse direction 40 times)
