Spec

• Filtration area, m

  ²

  : 0.18
• Filter bore diameter, μm: 0.2
• Length, Inch (cm): 4 (10)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophobicity PTFE
• Filter brand name: Aervent
• Brand name: Optiseal
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 6
• Overview: Optiseal Aervent cartridge filter 0.2μm, hydrophobicity

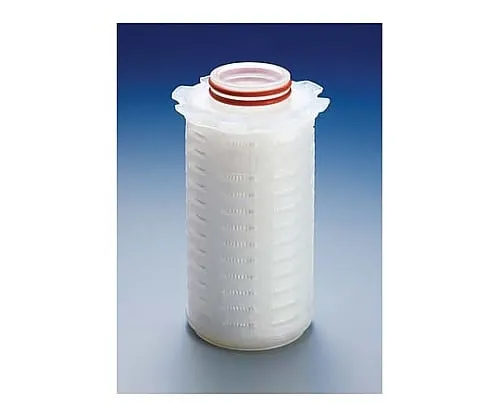

• Product name: Optiseal cartridge filter
• Cartridge code: Double O-ring (2-123), with hold-down tab
• Hydro-Core test: water flow quantity of


  0.20mL/minute at 260kPa (38psig)
• Bubble point, 23 °C:


  110kPa (16psig) 70/30% IPA/water
• Maximum input pressure, kPa (psi): Normal direction - 5.5 (80) @ 25 ℃; 1.7 (25) @ 80 ℃; 0.35 (5) @ 135 ℃; reverse direction - 4.1 (60)
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) @ 25 ℃; 172 (25) @ 80 ℃; 34 (5) @ 135 ℃; reverse direction - 414 (60)
• Wettability: Hydrophobicity
• Sterilization: 80 times of SIP at 135 ℃ for 30 minutes (normal direction 40 times/reverse direction 40 times); 80 times of autoclave sterilization at 135 ℃ for 30 minutes
• Nitrogen diffusion flow rate, 23 °C:


  6mL/min @ 96.5kPa (14psig) in 70//30 % IPA/water
• Total extract: The extractables level was equal to or less than 10


  mg per 4-inch cartridge after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
