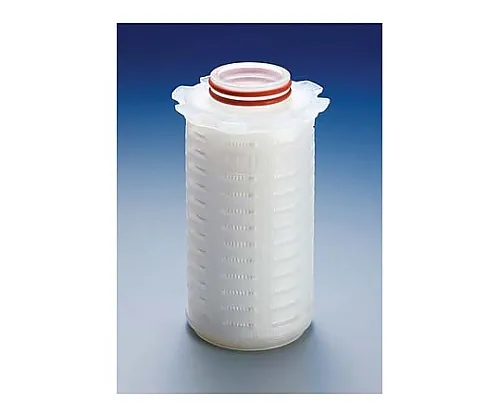

61-0253-87 Optiseal Durapore Cart Filt 0.22μm Phobic 6/Pk 6 x 1ST LAGB04TP6
Product Description
Product Model: 61-0253-87Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0253-87
Product Brand: Merck Millipore Corporation
Spec
-
Filtration area, m
2
: 0.18 - Filter bore diameter, μm: 0.22
- Length, Inch (cm): 4 (10)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Material: Hydrophobicity PVDF
- Filter brand name: Durapore(R)
- Brand name: Optiseal
- Main application: Laboratory Filtration
- Package: Double easy open bag
- Form: Cartridge
- Quantity/box: 6
- Overview: Optiseal Durapore cartridge filter, 0.22μm, hydrophobicity
- Product name: Optiseal cartridge filter
-
Air diffusion flow rate, 23 °C: Nitrogen diffusion value (at 23℃, 60% IPA wetting): 103kPa (15psig) at
2mL/min/cartridge - Cartridge code: Double O-ring (2-123), with hold-down tab
-
Bubble point, 23 °C:
124kPa (18psig) 60//40% IPA/water - Maximum input pressure, kPa (psi): Normal direction - 5.5 (80) @ 25 ℃; 3.5 (50) @ 80 ℃; 0.35 (5) @ 135 ℃; reverse direction - 3.5 (50) @ 25 ℃
- Maximum differential pressure, kPa (psid): Normal direction - 552 (80) @ 25 ℃; 345 (50) @ 80 ℃; 34 (5) @ 135 ℃; reverse direction - 345 (50) @ 25 ℃
- Wettability: Hydrophobicity
- Sterilization: 30 times of in-line steam sterilization at 135℃ for 30 minutes; 10 times of autoclave sterilization at 126 ℃ for 30 minutes
-
Nitrogen diffusion flow rate, 23 °C:
2mL/min @ 100kPa (15psig) in 60//40 % IPA/water -
Total extract: The extractables level was equal to or less than 10
mg per 4-inch cartridge after 24
hours in a 70/30%
IPA/water mixture at controlled room temperature.
