Spec

• Filtration area, m

  ²

  : 1.38
• Length, cm (inch): 20
• Length, Inch (cm): 20 (50)
• Support material: Polyester
• Seal material: Silicone
• Device material: Polypropylene
• Vent cap material: Polypropylene
• Material: Cellulose mixed ester
• Housing: Polypropylene
• Filter brand name: Milligard
• Format: Double Layer
• Brand name: Opticap
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Capsule
• Connection, Inlet/outlet: 16mm (5/8in.) hose port
• Quantity/box: 1
• Overview: Opticap XLT20 Milligard 1.2/0.5μm 5/8in. HB/HB

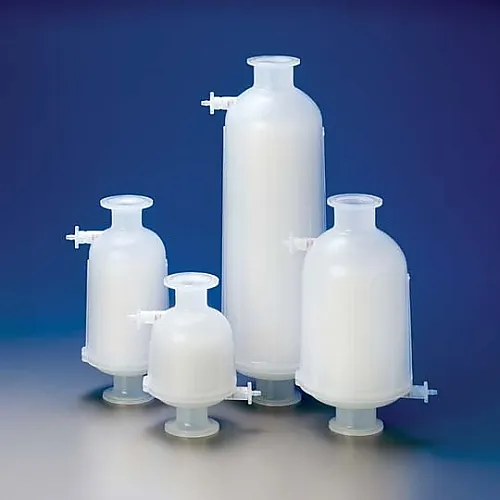

• Product name: Opticap XLT capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• T-line/Gauge Port: T-line
• Nominal bore diameter, μm: 1.2 / 0.5
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): 345 (50) @ 25


  °C
• Sterilization: Autoclave sterilization 3 times for 30 minutes at 121℃; no in-line steam sterilization
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 110


  mg per capsule after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 10L
