Digital Products

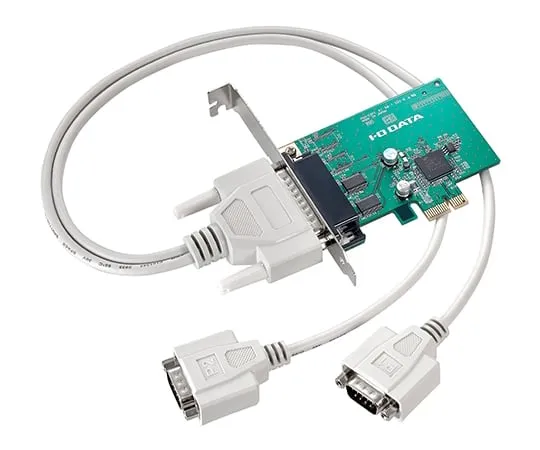

64-9077-50 RS-232C Expansion Interface Board PCI Express RSA-EXP2P2
Product Description
Product Model: 64-9077-50Product Brand: I -O DATA Spec […]
Contact Us
Product Details
Product Model: 64-9077-50
Product Brand: I -O DATA
Spec
- Controller: EXAR XR17V354IB176
- FIFO buffer: 2 x 256 bytes (S***, Receive) x 2 ports
- Cable specifications: D-sub 44pi male to D-sub 9pin male x 2 ports (Approximately 60 cm, inch screws #4-40UNC)
- Number of ports: 2 ports
- Interface Specifications: PCI Express: 1 x 2.0 (Gen1)
- Communication speed: Up to 921.6kbps
- IRQ ***d: 1
- Maximum concurrent connections: 2
- Supply voltage: 3.3 VDC
- Current consumption: 110 mA (Max)
- Board Size: Approx. 90 (W) x 69 (H) mm * Excluding Slot Cover Portion and Protrusions
- Weight: Approx. 54 g * Excluding cable
- Weight (when packed): Approx. 270 g
- Operating temperature range: 0~55°C
- Operating humidity range: 10~90% (no condensation)
- Certification standards: VCCI Class B, RoHS Directive compliant (10 substances)
- Warranty Period: 1 Year Warranty
