Electronic/Electrical Parts and Controll Equipments

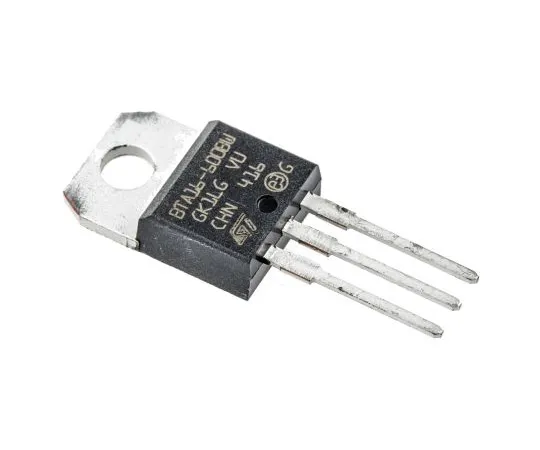

63-4821-11 BTA16-600BWRG 16A, 600V, TRIAC, Gate Trigger 1.3V 50mA, 3-pin, Through Hole, TO-220AB STMicroelectronics BTA16-600BWRG
model:
63-4821-11
brand:
STMicroelectronics
Product Description
Product Model: 63-4821-11Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-4821-11
Product Brand: STMicroelectronics
Features
- TRIAC, 16A to 20A, STMicroelectronics
Spec
- Quantity：1bag(5pieces)
- Rated Average On-State Current : 16A
- Mounting Type : Through Hole
- Package Type : TO-220AB
- Maximum Gate Trigger Current : 50mA
- Repetitive Peak Reverse Voltage : 600V
- Surge Current Rating : 168A
- Pin Count : 3
- Maximum Gate Trigger Voltage : 1.3V
- Repetitive Peak Forward Blocking Voltage : 600V
- Maximum Holding Current : 50mA
- Dimensions : 10.4 x 4.6 x 9.3mm
- Length : 10.4mm
- Width : 4.6mm
- Height : 9.3mm
- Minimum Operating Temperature : -40 °C
- CODE No.:486-0907
