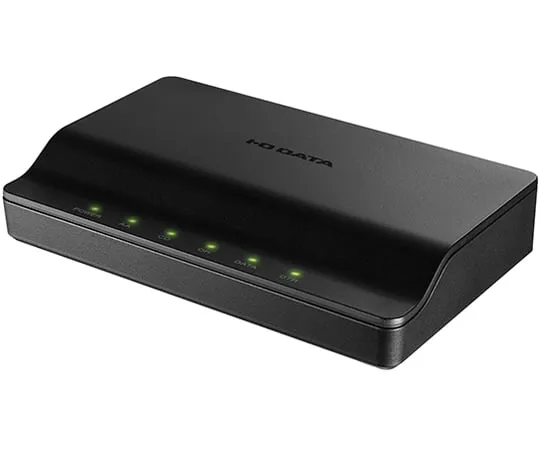

64-9077-48 Analog Modem RS-232C Connection DFM-56S
Product Description
Product Model: 64-9077-48Product Brand: I -O DATA Spec […]
Contact Us
Product Details
Product Model: 64-9077-48
Product Brand: I -O DATA
Spec
- adaptive lines: two-wire subscriber phone lines
- control commands: AT command compliance
- Dial method: pulse, tone
- Interface: RS-232C (D-sub: 9pin/female)
- Connectors: Serial port (D-sub 9pin/female) x 1, PHONE jack x 1, LINE jack x 1
- Supply Voltage: 100 VAC 50 Hz/60 Hz
- Power consumption: 1.1 W (Typ)
- Current consumption: 150 mA (Typ)
- External Dimensions: Approx. 135 (W) x 83 (D) x 25 (H) mm * Excluding Protrusions
- Weight: about 140 g
- Weight (when packed): Approx. 490 g
- Operating temperature range: 0~40°C
- Operating humidity range: 20~80% (non-condensation)
- Warranty Period: 1 Year Warranty
- Various acquisition standards and legal regulations
- Electrical Appliances and Materials Safety Act (AC Adapters)
- Telecommunications Business Law: Design Certification
- VCCI: ClassB, RoHS Directive compliant (10 substances)
