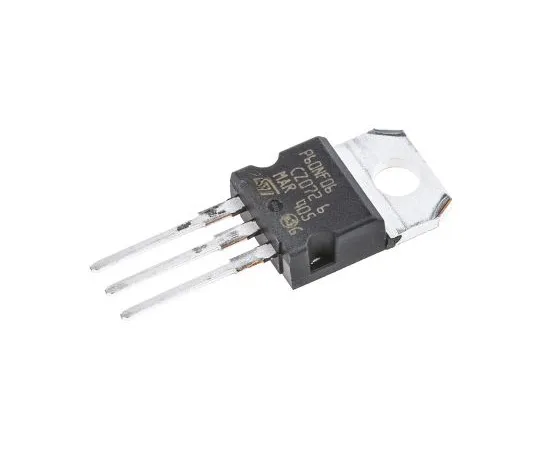

63-4820-34 STP60NF06 N-Channel MOSFET, 60 A, 60 V STripFET II, 3-Pin TO-220 STMicroelectronics STP60NF06
model:
63-4820-34
brand:
STMicroelectronics
Product Description
Product Model: 63-4820-34Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-4820-34
Product Brand: STMicroelectronics
Features
- N-Channel STripFET™ II, STMicroelectronics. STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.
Spec
- Quantity：1bag(5pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 60 A
- Maximum Drain Source Voltage : 60 V
- Maximum Drain Source Resistance : 16 mΩ
- Maximum Gate Threshold Voltage : 4V
- Minimum Gate Threshold Voltage : 2V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 150 W
- Typical Turn-Off Delay Time : 43 ns
- CODE No.:485-7800
