Spec

• Filtration area, m

  ²

  : 0.19
• Filter bore diameter, μm: 0.1
• Diameter, cm (inch): 14.5 (5.7)
• Length, Inch (cm): 4 (10)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Vent cap material: Polypropylene
• Material: Hydrophilic PVDF
• Housing: Polypropylene
• Filter brand name: Durapore(R)
• Brand name: Opticap
• Main application: Laboratory Filtration
• Substitute: SN1M029A8
• Package: Double easy open bag
• Form: Capsule
• Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange/14mm (9/16in.) hose port
• Quantity/box: 3
• Overview: Opticap XL4 Durapore 0.1μm 1-1/2in. TC-9/16in. HB

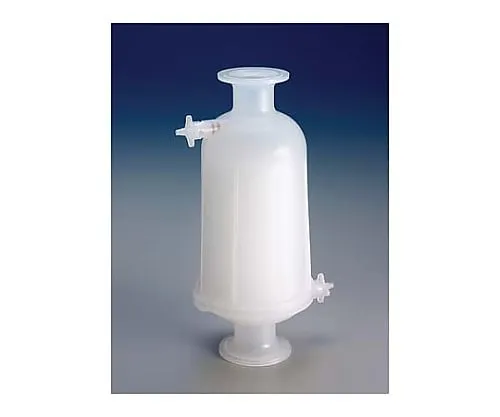

• Product name: Opticap XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Air diffusion flow rate, 23 °C:


  7.5mL/min at 390kPa (56psig) wetted with water
• Bubble point, 23 °C:


  483kPa (70psig) water-wet and air
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 345 (50) at 25℃, intermittent
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization 3 times for 60 minutes at 126℃; no in-line steam sterilization
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 10


  mg per capsule after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 500mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
