Analyzer, Testing Equipment
61-0251-33 Opticap XL2 Durapore 0.1μm 1-1/2In. TC-9/16In. HB; 3/Pk 3 x 1ST KVVLA02TH3
Product Description
Product Model: 61-0251-33Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0251-33
Product Brand: Merck Millipore Corporation
Spec
-
Filtration area, cm
2
: 900 -
Filtration area, m
2
: 0.09 - Filter bore diameter, μm: 0.1
- Diameter, cm (inch): 14.5 (5.7)
- Length, Inch (cm): 2 (5)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Vent cap material: Polypropylene
- Material: Hydrophilic PVDF
- Housing: Polypropylene
- Filter brand name: Durapore(R)
- Brand name: Opticap
- Main application: Laboratory Filtration
- Substitute: SN1M029A8
- Package: Double easy open bag
- Form: Capsule
- Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange/14mm (9/16in.) hose port
- Quantity/box: 3

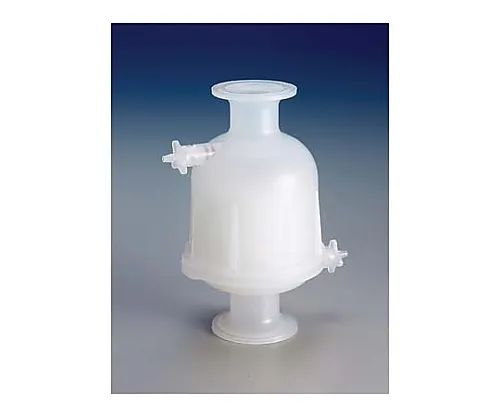

- Overview: Opticap XL2 Durapore 0.1μm 1-1/2in. TC-9/16in. HB
- Product name: Opticap XL capsule filter
- Maximum Inlet Pressure (psig): 80
- Maximum Inlet Temperature, °C: 25
-
Bubble point, 23 °C:
483kPa (70psig) water-wet and air -
Maximum input pressure, kPa (psi): 552 (80) @ 25
°C; 276 (40) @ 60
°C; 103 (15) @ 80
°C - Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 345 (50) at 25℃, intermittent
- Wettability: Hydrophilic
- Sterilization: Autoclave sterilization 3 times for 60 minutes at 126℃; no in-line steam sterilization
- Sterility: No sterilization
-
Total extract: The extractables level was equal to or less than 10
mg per capsule after 24
hours in water at controlled room temperature. - Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 500mL
- ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
