Spec

• Filtration area, cm

  ²

  : 1800
• Filtration area, m

  ²

  : 0.18
• Filter bore diameter, μm: 0.22
• Diameter, cm (inch): 6.1 (2.4)
• Length, cm (inch): 17.0 (6.7)
• Length, Inch (cm): 4 (10)
• Support material: Polyester
• Seal material: Silicone
• Device material: Gamma compatible polypropylene
• Vent cap material: Polypropylene
• Material: Hydrophilic PVDF
• Housing: Polypropylene
• Filter brand name: Durapore(R)
• Brand name: Opticap
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Capsule
• Connection, Vent/drain: 1/4in. hose port double O-ring seal
• Connection, Inlet/outlet: 38 mm (1-1/2in.) sanitary flange
• Quantity/box: 3
• Overview: Opticap gamma line compatible XL4 Durapore 0.22μm -1-1/2in. TC/TC

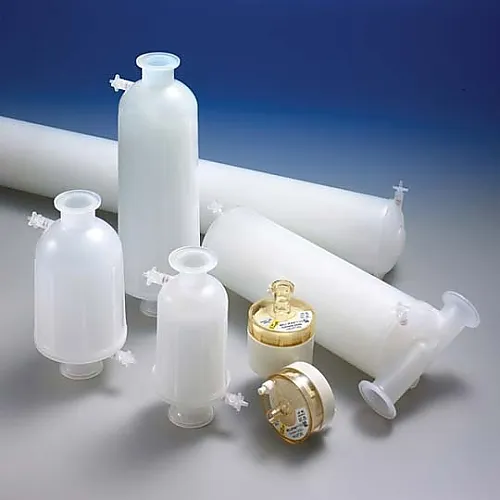

• Product name: Opticap gamma line compatible XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Air diffusion flow rate, 23 °C:


  3.2mL/min at 276kPa (40psig) wetted with water
• Bubble point, 23 °C:


  276kPa (40psig) wetted with water and air
• Maximum input pressure, kPa (psi): 552 (80) @ 23 °C; 276 (40) @ 60 °C; 103 (15) @ 80 °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 276 (40) at 25℃, intermittent
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization at 126℃ for 60 minutes for 3 times; 45 kilogray (4.5 Megarad) gamma irradiation compatible; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 500mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
