Spec

• Filtration area, m

  ²

  : 0.7
• Length from inlet to outlet, cm (inch): 17.5 (6.9)
• Filter bore diameter, μm: 0.22
• Length, cm (inch): 37.6 (14.8)
• Length, Inch (cm): 10 (25)
• Support material: Polyester
• Seal material: Silicone
• Device material: Gamma compatible polypropylene
• Vent cap material: Polypropylene
• Material: Hydrophilic PVDF
• Housing: Polypropylene
• Filter brand name: Durapore(R)
• Brand name: Opticap
• Main application: Laboratory Filtration
• Form: Capsule
• Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange/16mm (5/8in.) hose port
• Quantity/box: 1
• Overview: Opticap XLT10 Durapore 0.22μm gamma compatible 1-1/2in. TC-5/8in. HB

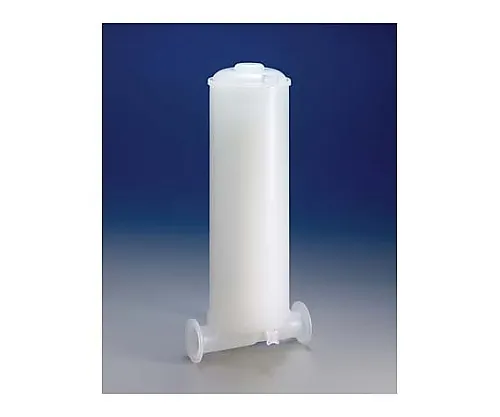

• Product name: Opticap XLT capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• T-line/Gauge Port: T-line
• Air diffusion flow rate, 23 °C:


  14mL/min at 280kPa (40psig) wetted with water
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 172 (25) at 80℃; reverse direction - 345 (50) at 25℃, intermittent
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization at 126℃ for 60 minutes for 3 times; 45 kilogray (4.5 Megarad) gamma irradiation compatible; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 25


  mg per capsule after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Conform to USP Oxidizable Substances Test after flashing with next water ?1L
