Analyzer, Testing Equipment

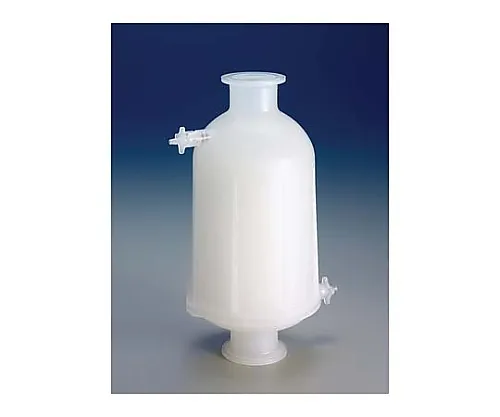

61-0250-25 Opticap Sterilizing Grade XL5 Durapore Phobic 0.22μm 1.5In TC/TC 1/Pk 1ST KVGBA05TT1
Product Description
Product Model: 61-0250-25Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0250-25
Product Brand: Merck Millipore Corporation
Spec
-
Filtration area, m
2
: 0.35 - Filter bore diameter, μm: 0.22
- Diameter, cm (inch): 14.5 (5.7)
- Length, cm (inch): 21.6 (8.5)
- Length, Inch (cm): 5 (12.5)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Vent cap material: Polypropylene
- Material: Hydrophobicity PVDF
- Housing: Polypropylene
- Filter brand name: Durapore(R)
- Brand name: Opticap
- Main application: Laboratory Filtration
- Package: Double easy open bag
- Form: Capsule
- Connection, Vent/drain: 1/4in. hose port with double O-ring seal
- Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange
- Quantity/box: 1
- Overview: Opticap XL5 Durapore hydrophobicity 0.22μm 1-1/2in. TC/TC
- Product name: Opticap XL capsule filter
- Maximum Inlet Pressure (psig): 80
- Maximum Inlet Temperature, °C: 25
-
Bubble point, 23 °C:
124kPa (18psig) 60//40% IPA/water -
Maximum input pressure, kPa (psi): 552 (80) @ 25
°C; 276 (40) @ 60
°C; 103 (15) @ 80
°C - Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 345 (50) at 25℃, intermittent
- Wettability: Hydrophobicity
- Sterilization: Autoclave sterilization at 126℃ for 30 minutes for 20 times; in-line steam sterilization is unavailable
- Sterility: No sterilization
-
Nitrogen diffusion flow rate, 23 °C:
5mL/min at 170kPa (25psig) 60//40% IPA/water - ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
