Spec

• Filtration area, m

  ²

  : 0.35
• Filter bore diameter, μm: 0.22
• Diameter, cm (inch): 14.5 (5.7)
• Length, cm (inch): 21.6 (8.5)
• Length, Inch (cm): 5 (12.5)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Vent cap material: Polypropylene
• Material: Hydrophobicity PVDF
• Housing: Polypropylene
• Filter brand name: Durapore(R)
• Brand name: Opticap
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Capsule
• Connection, Vent/drain: 1/4in. hose port with double O-ring seal
• Connection, Inlet/outlet: 14mm (9/16in.) hose port
• Quantity/box: 1
• Overview: Opticap XL5 Durapore hydrophobicity 0.22μm 9/16in. HB/HB

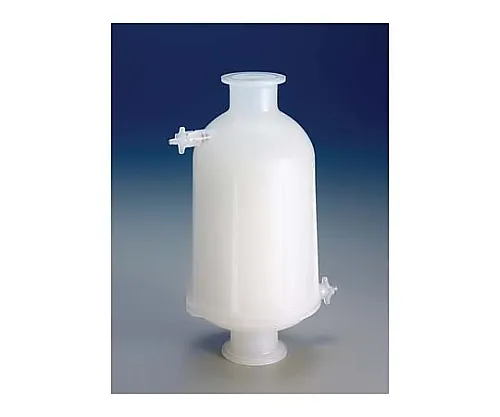

• Product name: Opticap XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Bubble point, 23 °C:


  124kPa (18psig) 60//40% IPA/water
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 345 (50) at 25℃, intermittent
• Wettability: Hydrophobicity
• Sterilization: Autoclave sterilization at 126℃ for 30 minutes for 20 times; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Nitrogen diffusion flow rate, 23 °C:


  5mL/min at 170kPa (25psig) 60//40% IPA/water
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
