Spec

• Filtration area, m

  ²

  : 0.21
• Filter bore diameter, μm: 0.2
• Diameter, cm (inch): 12.5 (4.9)
• Length, Inch (cm): 7.4 (18.8)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Vent cap material: Polypropylene
• Material: Hydrophobicity PTFE
• Housing: Polypropylene
• Filter brand name: Aervent
• Brand name: Opticap
• Main application: Laboratory Filtration
• Substitute: KTGR04FF3
• Package: Double easy open bag
• Form: Capsule
• Connection, Inlet/outlet: 19mm (3/4in.) sanitary flange
• Quantity/box: 3
• Overview: Opticap XL4 Aervent 0.2μm 3/4in. TC/TC

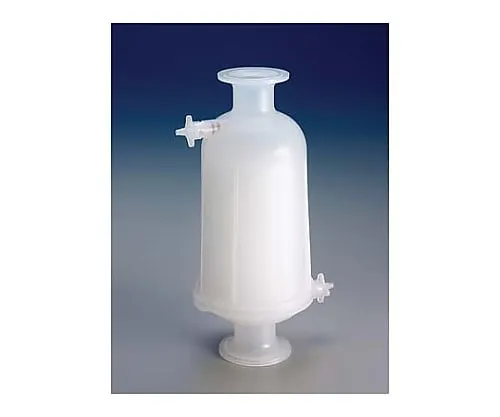

• Product name: Opticap XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Air diffusion flow rate, 23 °C:


  9mL/min at 96.5kPa (14psig) 70//30% IPA/water
• Hydro-Core test:


  0.25?mL/min @ 260?kPa (38?psig)
• Bubble point, 23 °C:


  110kPa (16psig) 70/30% IPA/water
• Maximum input pressure, kPa (psi): 552 (80) @23


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 414 (60) at 25℃, intermittent
• Wettability: Hydrophobicity
• Sterilization: Autoclave sterilization at 135℃ for 30 minutes for 30 times; in-line steam sterilization is unavailable
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 15


  mg after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
