Analyzer, Testing Equipment

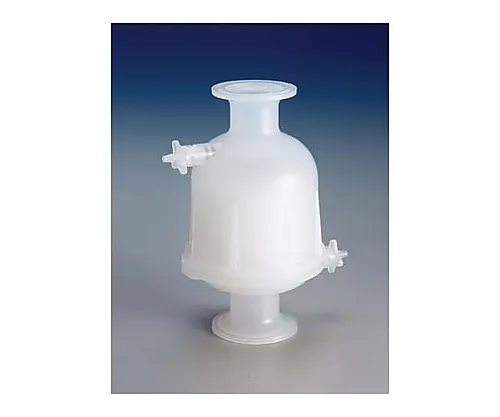

61-0248-96 Opticap Sterilizing Grade XL2 Aervent 0.2μm 1.5In TC/TC 3/Pk 3 x 1ST KTGRA02TT3
Product Description
Product Model: 61-0248-96Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0248-96
Product Brand: Merck Millipore Corporation
Spec
-
Filtration area, m
2
: 0.1 - Filter bore diameter, μm: 0.2
- Diameter, cm (inch): 12.5 (4.9)
- Length, Inch (cm): 5.6 (14.3)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Vent cap material: Polypropylene
- Material: Hydrophobicity PTFE
- Housing: Polypropylene
- Filter brand name: Aervent
- Brand name: Opticap
- Main application: Laboratory Filtration
- Substitute: KTGR04TC3
- Package: Double easy open bag
- Form: Capsule
- Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange
- Quantity/box: 3
- Overview: Opticap XL2 Aervent 0.2μm 1-1/2in. TC/TC
- Product name: Opticap XL capsule filter
- Maximum Inlet Pressure (psig): 80
- Maximum Inlet Temperature, °C: 25
-
Hydro-Core test:
0.12?mL/min @ 260?kPa (38?psig) -
Bubble point, 23 °C:
110kPa (16psig) 70/30% IPA/water -
Maximum input pressure, kPa (psi): 552 (80) @ 25
°C; 276 (40) @ 60
°C; 103 (15) @ 80
°C - Maximum differential pressure, kPa (psid): Normal direction - 552 (80) at 25℃; 103 (15) at 80℃; reverse direction - 414 (60) at 25℃, intermittent
- Wettability: Hydrophobicity
- Sterilization: Autoclave sterilization at 135℃ for 30 minutes for 30 times; in-line steam sterilization is unavailable
- Sterility: No sterilization
-
Total extract: The extractables level was equal to or less than 15
mg after 24
hours in a 70/30%
IPA/water mixture at controlled room temperature.
