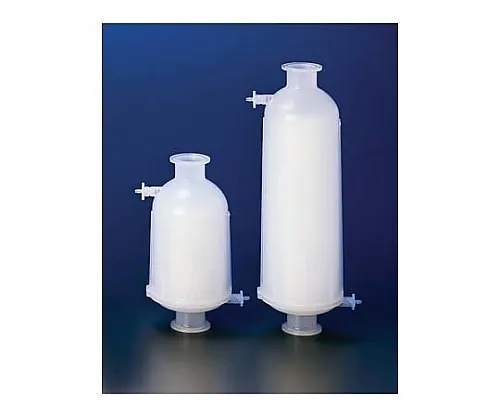

61-0248-47 Opticap XL5 Polygard-Cr 75μm 3/4In. TC/TC 1/Pk 1ST KR75A05FF1
Product Description
Product Model: 61-0248-47Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0248-47
Product Brand: Merck Millipore Corporation
Spec
- Diameter, cm (inch): 10.7 (4.2)
- Length, Inch (cm): 5 (12.5)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Vent cap material: Polypropylene
- Material: Polypropylene
- Housing: Polypropylene
- Format: Single Layer
- Brand name: Opticap
- Main application: Laboratory Filtration
- Package: Double easy open bag
- Form: Capsule
- Connection, Inlet/outlet: 19mm (3/4in.) sanitary flange
- Quantity/box: 1
- Overview: Opticap XL5 Polygard-CR 75μm 3/4in. TC/TC
- Product name: Opticap XL capsule filter
- Maximum Inlet Pressure (psig): 80
- Maximum Inlet Temperature, °C: 25
- Nominal bore diameter, μm: 75.0
-
Maximum input pressure, kPa (psi): 552 (80) @ 25
°C; 276 (40) @ 60
°C; 103 (15) @ 80
°C -
Maximum differential pressure, kPa (psid): 483 (70) @ 25
°C - Sterilization: Autoclave sterilization 3 times for 30 minutes at 126℃; no in-line steam sterilization
- Sterility: No sterilization
-
Total extract: The extractables level was equal to or less than 30
mg per capsule after 24
hours in water at controlled room temperature. - Potassium permanganate reduced substance: Conform to USP Oxidizable Substances Test after flashing with next water ?2.5L
- ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
