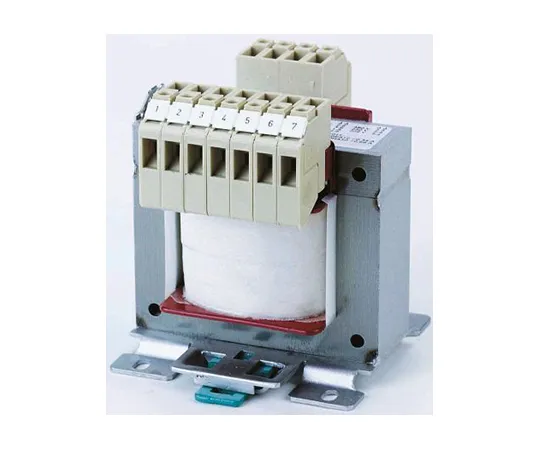

63-4815-82 Siemens 1kVA Isolating Transformer, 230V ac Primary 1 x, 230V ac Secondary 4AM5742-4TT10-0FA0
Product Description
Product Model: 63-4815-82Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-4815-82
Product Brand: Siemens
Features
- EN 61 558-2-1, EN 61 558-2-2, EN 61 558-2-4 (at U SEC > 50 V AC), EN 61 558-2-6, VDE 0570. CE, UL. Control transformers, 1-phase, 4AM Series. Use as power, safety or displacement transformers in accordance with the applicable EN norm High short-term performance Low switch-on power (switch-on rush) Protect against short circuits and overloading with motor protection switches on main side Electrically isolated coils Screw terminal connectors
Spec
- Quantity：1piece
- Primary Voltage Rating : 230V ac
- Secondary Voltage Rating : 230V ac
- Power Rating : 1kVA
- Mounting Type : DIN Rail
- Number of Outputs : 1
- Length : 144mm
- Width : 152mm
- Depth : 132mm
- Dimensions : 144 x 152 x 132mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Maximum Temperature : +40°C
- Weight : 14kg
- CODE No.:480-4812
