Spec

• Filtration area, m

  ²

  : 0.18
• Diameter, cm (inch): 10.7 (4.2)
• Length, Inch (cm): 5 (12.5)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Vent cap material: Polypropylene
• Material: Polypropylene
• Housing: Polypropylene
• Format: Single Layer
• Brand name: Opticap
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Capsule
• Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange
• Quantity/box: 1
• Overview: Opticap XL5 Polygard-CN 5.0μm -1-1/2in. TC/TC

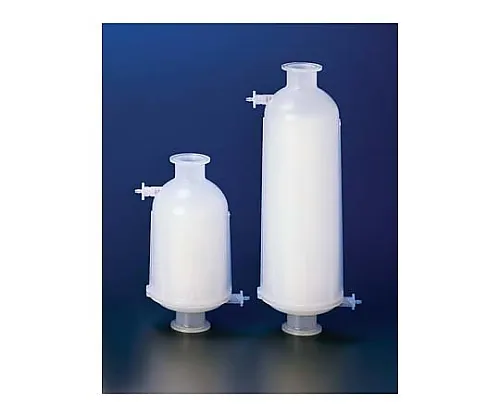

• Product name: Opticap XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Nominal bore diameter, μm: 5.0
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): 483 (70) @ 25


  °C
• Sterilization: Autoclave sterilization 3 times for 30 minutes at 126℃; no in-line steam sterilization
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 25


  mg per capsule after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 2L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
