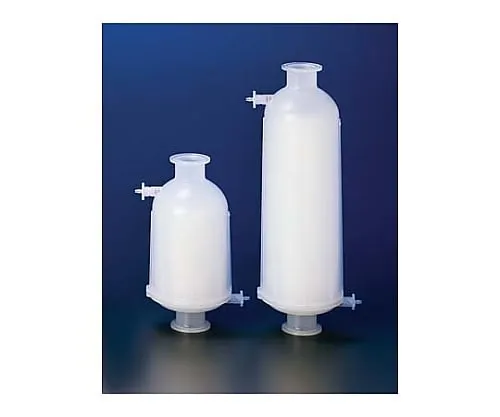

61-0247-54 Opticap XL10 Polygard-CN 2.5μm 9/16In. HB/HB 1/Pk 1ST KN25A10HH1
Product Description
Product Model: 61-0247-54Product Brand: Merck Millipore […]
Contact Us
Product Details
Product Model: 61-0247-54
Product Brand: Merck Millipore Corporation
Spec
-
Filtration area, m
2
: 0.42 - Diameter, cm (inch): 10.7 (4.2)
- Length, Inch (cm): 10 (25)
- Support material: Polypropylene
- Seal material: Silicone
- Device material: Polypropylene
- Vent cap material: Polypropylene
- Material: Polypropylene
- Housing: Polypropylene
- Format: Single Layer
- Brand name: Opticap
- Main application: Laboratory Filtration
- Substitute: KN2501HB1
- Package: Double easy open bag
- Form: Capsule
- Connection, Inlet/outlet: 14mm (9/16in.) hose port
- Quantity/box: 1
- Overview: Opticap XL10 Polygard-CN 2.5μm 9/16in. HB/HB
- Product name: Opticap XL capsule filter
- Maximum Inlet Pressure (psig): 80
- Maximum Inlet Temperature, °C: 25
- Nominal bore diameter, μm: 2.5
-
Maximum input pressure, kPa (psi): 552 (80) @ 25
°C; 276 (40) @ 60
°C; 103 (15) @ 80
°C -
Maximum differential pressure, kPa (psid): 483 (70) @ 25
°C - Sterilization: Autoclave sterilization 3 times for 30 minutes at 126℃; no in-line steam sterilization
- Sterility: No sterilization
-
Total extract: The extractables level was equal to or less than 55
mg per capsule after 24
hours in water at controlled room temperature. - Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 5L
- ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
