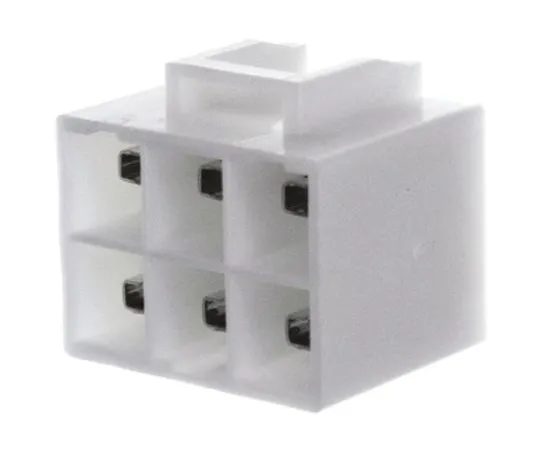

63-4813-40 JST VL, 6 Way, 2 Row, Straight PCB Header B06P-VL
Product Description
Product Model: 63-4813-40Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4813-40
Product Brand: JST
Features
- JST VL series Shrouded PCB Headers. High current, high voltage fully shrouded PCB mounting box headers from JST. These 6.2mm pitch VL series headers have PA 66 UL94V-0 rated body housings and are suitable for high power wire-to-board connections. They incorporate inter-housing locks to prevent accidental disconnection. For mating VL Series Plug Housings see RS ; 476-6552 476-6552 typical. Features ; Benefits. Voltage rating: 600V ac/dc Current rating: 20A Initial contact resistance: 7mΩ max UL Recognized E60389 CSA Certified LR20812 TUV Certified R9351103
Spec
- Quantity：1bag(10pieces)
- Series : VL
- Pitch : 6.2mm
- Number of Contacts : 6
- Number of Rows : 2
- Body Orientation : Straight
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Contact Plating : Tin
- Voltage Rating : 600 V ac/dc
- CODE No.:476-6704
