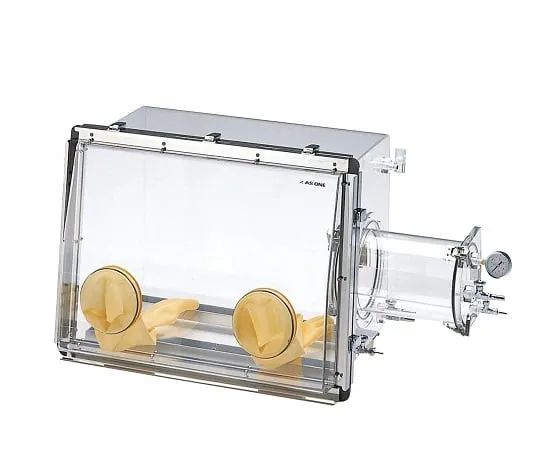

3-4095-02 Gas Replacement Acrylic Glove Box B Type PC (With Outlet)
Product Description
Product Model: 3-4095-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4095-02
Product Brand: AS ONE Corporation
Features
- The pass box can be replaced with a vacuum system.
- The entire front panel can be removed for easy access to large equipment.
- The body has a safety valve (100 mmH2O=980 Pa) for positive pressure.
- There is a sliding dish in the pass box so you can take samples in and out easily.
- There is an outlet inside the unit.
Spec
- Size (mm): 600 x 1107 x 580
- Material: Main unit/Reinforced Transparent PMMA (acrylic), Valve Vacuum Mounting Unit/Polycarbonate
- Pass box mm : φ180 x 300 inner size
- Weight: 23 kg
- Body pressure: Positive pressure 15 mmH2O (147 Pa) (Decompression is not allowed.)
- Pass box vacuum tolerance : about 133 Pa (1 Torr)
- Outlet specs: 2 AC100V outlets
- Accessories
- *Valve x 4 pieces (outer diameter φ8 mm x 2 pieces outer diameter φ14 mm x 2 pieces)
- *Vacuum gauge x 1 piece
- *Slide plate x 1 piece (For pass box)
- *1 pair of glove for glove box
*This product might require extra fees.
