gasmonitors

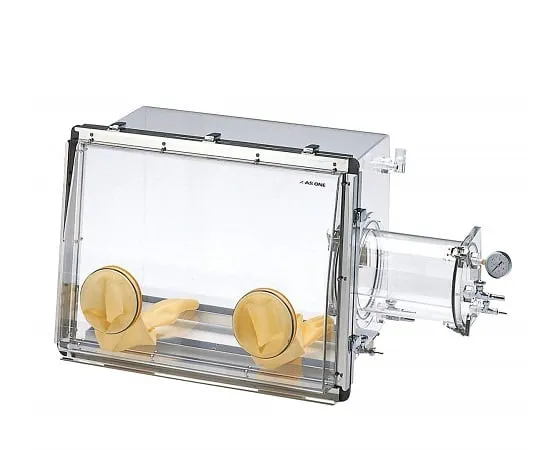

3-4095-01 Gas Replacement Type Acrylic Glove Box Type -
Product Description
Product Model: 3-4095-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4095-01
Product Brand: AS ONE Corporation
Features
- The pass box can be replaced by a vacuum drawing method.
- The entire front panel can be removed, making it easy to take large devices in and out.
- The body is equipped with a safety valve for positive pressure, and when the inside of the body reaches 10 mmH2O (98 Pa) or more, the valve opens to release the pressure, so you can *** it safely.
- A slide plate is attached in the pass box, so you can easily take samples in and out.
Spec
- Model number: B type
- Size (mm): 1107 x 600 x 580
- Usage: Gas replacement
- Material: Body/Reinforced transparent PMMA (acrylic), Valve, vacuum gauge mounting portion/PC (polycarbonate)
- Pass box internal dimensions: φ180 x 300mm
- Weight: 23kg
- Body withstand pressure: Positive pressure of 15mmH2O (147Pa) (decompression disabled)
- Pass box vacuum tolerance: About 133Pa (1Torr)
- Accessories: Valve 4 pieces (Outer diameter φ8mm x 2 pieces, Outer diameter φ14mm x 2 pieces), Vacuum gauge x 1 piece, Slide plate x 1 sheet (for pass box), Large Gloves for Glove box x 1 pair
*This product might require extra fees.
