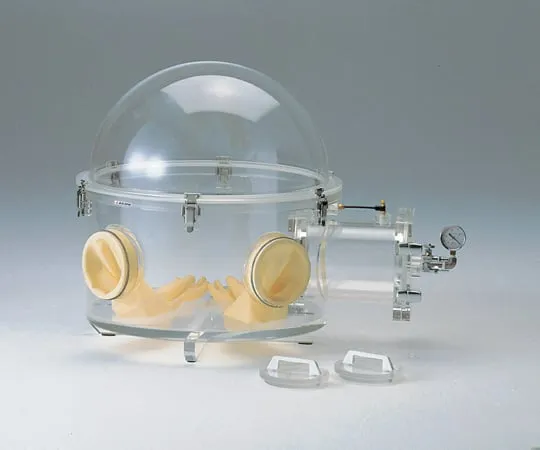

3-4084-02 Dome Type Acrylic Vacuum Glove Box DV Type PC (With Outlet)
Product Description
Product Model: 3-4084-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4084-02
Product Brand: AS ONE Corporation
Features
- The top dome of the main unit is a detachable lid.
- By passing through the pass box on the right side, samples can be taken in and out during work without changing the internal atmosphere.
- The body is dome-shaped and depressurizes up to 1Torr.
- The transparent PMMA (acrylic) and dome-shaped structure allow internal observation from all directions.
- There is an outlet inside the unit.
Spec
- Size (mm): 570 x 754 x 625
- Pass box: Main unit/Reinforced Transparent PMMA (acrylic), Valve, Vacuum gauge mounting part, material door part/Polycarbonate
- Body pressure reducing allowable range: about 133 Pa (1 Torr)
- Pass box size: φ200 x 250mm
- Pass box decompression tolerance : about 133 Pa (1 Torr)
- Outlet specs: 2 AC100V outlets
- Weight: 25 kg
- Accessories
- *Pressure gauge x 1 piece
- *Vacuum valve (outer diameter φ8 mm) x 2 pieces, (outer diameter φ14 mm) x 1 piece
- *1 pair of glove for glove box
- Recomm***ed vacuum pumps: oil rotation vacuum pumps (GLD -137 CC), oil rotation vacuum pumps (GCD -136 X)
*This product might require extra fees.
