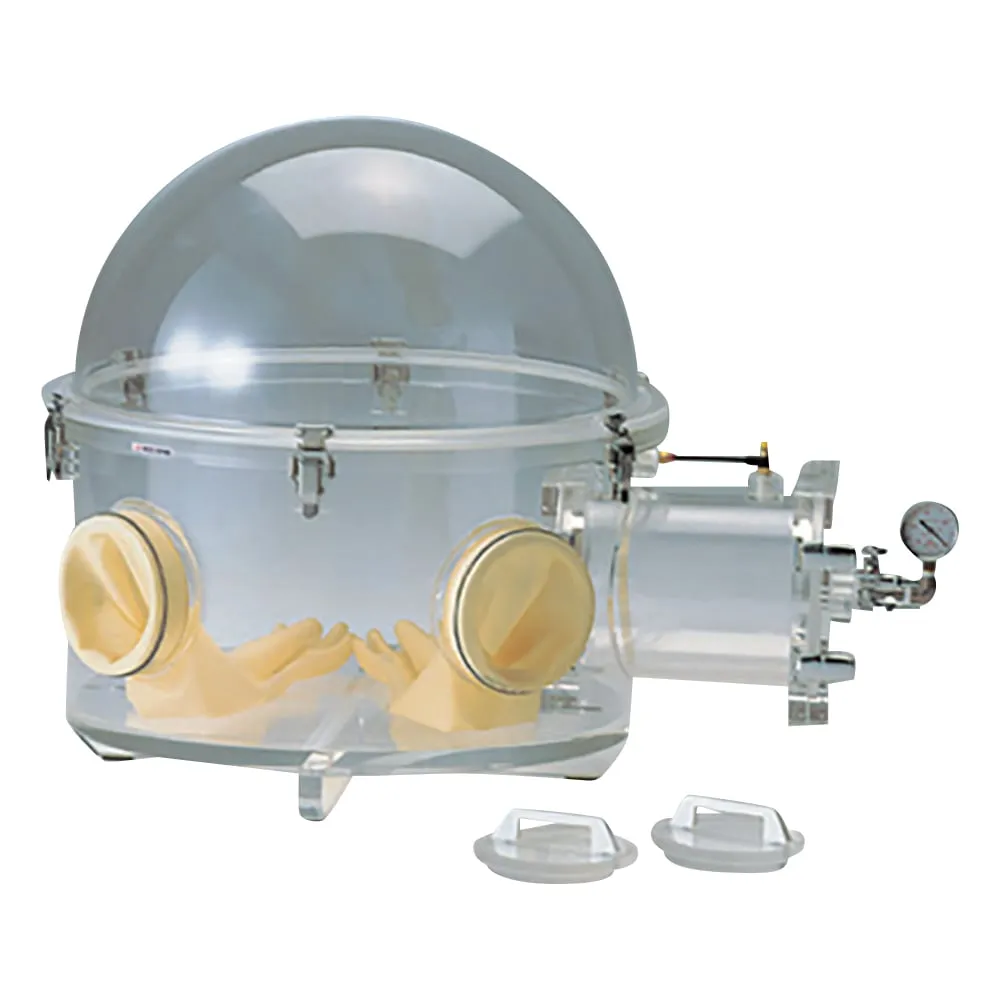

3-4084-01 Dome Type Acrylic Vacuum Glove Box Type DV
Product Description
Product Model: 3-4084-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4084-01
Product Brand: AS ONE Corporation
Features
- The top plate dome of the main body is a detachable lid.
- By passing the pass box on the right side, it is possible to take the sample in and out during the work without changing the internal atmosphere.
- The main body is dome-shaped to resist pressure reduction and can reduce pressure up to 1Torr.
- Transparent PMM (acrylic) A and dome-shaped structure allow observation of the interior from all directions.
Spec
- Model number: DV type
- Size (mm): 754 x 570 x 625
- Usage: Vacuum
- Material: Body/Strengthed transparent PMMA (acrylic), Valve, vacuum gauge mounting portion, Pass box door portion/PC (polycarbonate)
- Body decompression tolerance range: About 133Pa (1Torr)
- Pass box size: φ200 x 250mm
- Pass box decompression tolerance range: About 133Pa (1Torr)
- Weight: 25kg
- Accessories: Pressure gauge x 1 piece, Vacuum Valve (outer diameter φ8mm) x 2 pieces, (outer diameter φ14mm) X 1 piece, Large Gloves for Glove box x 1 pair
- Recomm***ed vacuum pump: GLD-136C, GCD-136X
*This product might require extra fees.
