Spec

• Diameter, cm (inch): 7.0 (2.75)
• Length, Inch (cm): 10 (25)
• Seal material: PTFE
• Device material: Polypropylene
• Material: Polypropylene
• Brand name: Clarigard
• Main application: Laboratory Filtration
• Form: Cartridge
• Quantity/box: 1

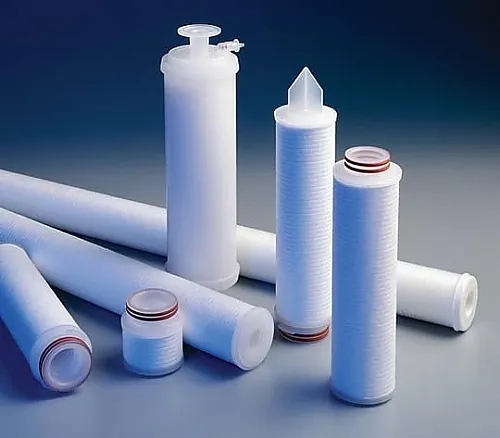

• Overview: Clarigard cartridge filter 10in. 0.5μm code7 PTFE coated fluoroelastomer
• Product name: Clarigard cartridge filter
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Nominal bore diameter, μm: 0.5
• Maximum input pressure, kPa (psi): 4.8 (70) @ 25


  °C
• Maximum differential pressure, kPa (psid): 483 (70) @ 25


  °C
• Wettability: Easily wetted with water
• Sterilization: Autoclave sterilization at 126℃ for 30 minutes or 10 times of SIP sterilization
• Total extract:


  10mg after soaking it in water for 24 hours
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 3L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
