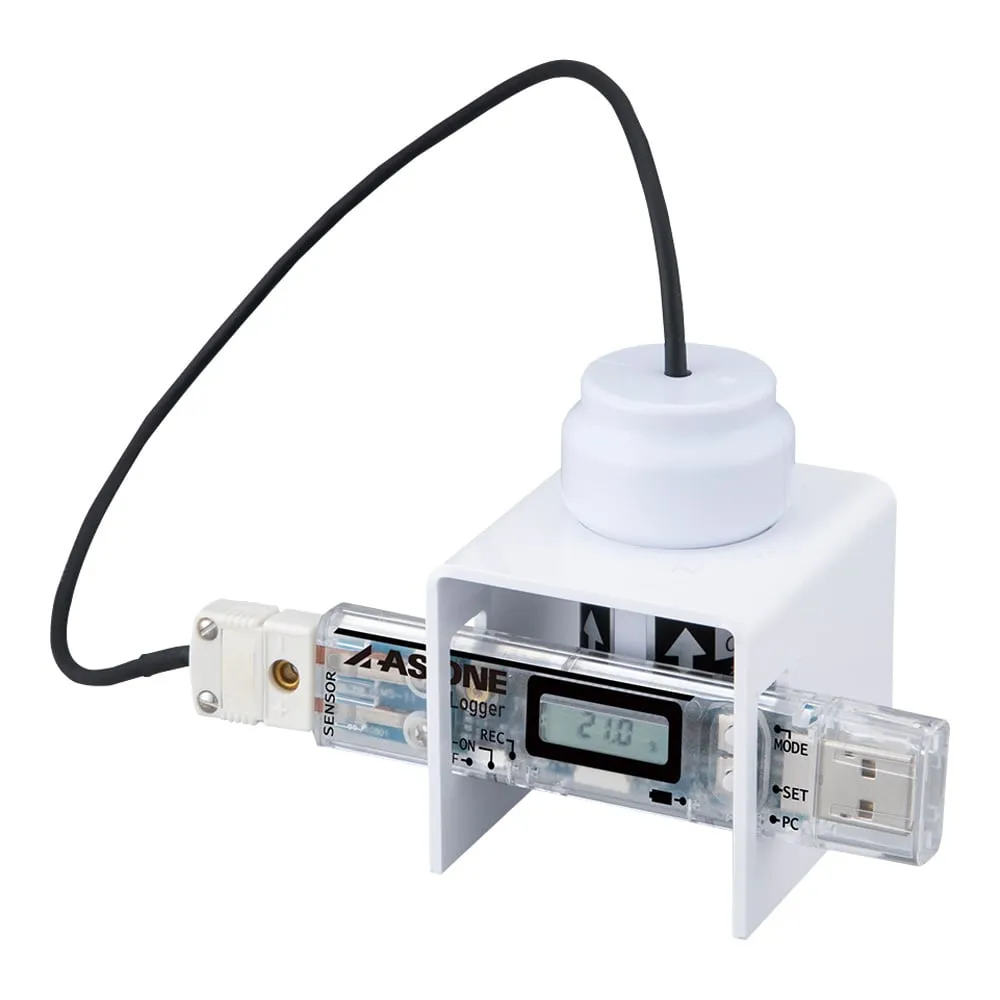

4-4286-01 Oxygen Logger (nitrogen Switchable) O2-N2
Product Description
Product Model: 4-4286-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4286-01
Product Brand: AS ONE Corporation
Features
- It comes with one-touch calibration.
- It can be directly connected to a PC, making it easy to transfer and retrieve data.
- Oxygen and nitrogen concentrations can be measured by switching operation.
- It can be ***d for storage of electronic components, desiccators, glove boxes, etc.
Spec
- Body size (mm): 95.0 x 21.0 x 10.4
- Weight (g): approximately 20
- Number of pieces: 1
- Detection principle: Galvani battery type
- Measuring range: 0 ~ 100%
- Accuracy: 0 ~ 25%/+/- 0.7% or +/- 1 digit, whichever is greater, 25 ~ 100%/+/- 1.5%
- Response time: About 15 seconds (90%)
- Resolution: 0.1%
- Sensor life: Warranty/1 year, Replacement estimate/1 year, maximum/about 3 years
- Sensor size: approx. 34 x 34 x 65 mm
- Power: CR 1220 button battery (included for testing), supplied via USB port
- Communication port: USB
- Operating System: Windows ® 10 (32 bit/64 bit), 11 (64 bit)
- Number of recordings: 30,000
- *The displayed nitrogen value is 100 - oxygen concentration (%). It is not a strict nitrogen concentration measurement.
- *It is not an alarm device, so it can not be ***d as an oxygen shortage alarm.
- < a href="https://axel.as-1.co.jp/images/pdf/pb/4-4286-01/rx-controller_v1.30.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application here < /a >
