Electronic/Electrical Parts and Controll Equipments
63-4809-42 Semi-Fixed Resistor 1 MΩ 0.25 W 1 Bag (5 Pieces) ST-4EB1MOhm
model:
63-4809-42
brand:
Copal Electronics
Product Description
Product Model: 63-4809-42Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4809-42
Product Brand: Copal Electronics
Features

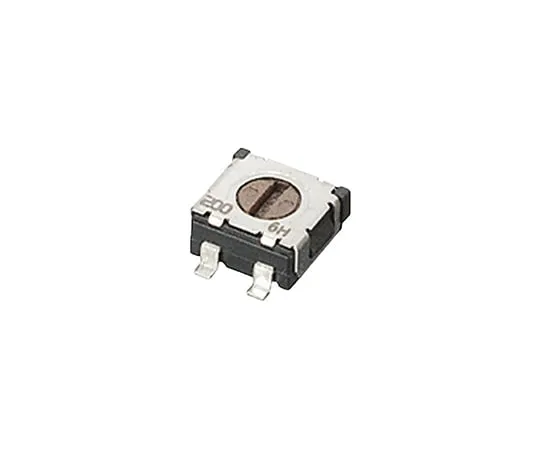

- Cermet Trimmer ST-4E Series
- Lead-free, cadmium-free solder flow/reflow solder anti-rotation structure to prevent opening between terminals, product shape, B: top adjusting gull wing, H: side adjusting gull wing
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 1 MΩ
- Mounting type: surface mount
- Speed: 1
- bearing: top adjustment
- Rated power: 0.25 W
- Series: ST-4
- *** styles: gulling
- Tolerance: +/- 20%
- Temperature coefficient: +/- 100ppm/deg. C
- Dimensions: 5 x 4.5 x 2.3 mm
- Operating temperature Min: -55°C
- Operating temperature mAx: +125°C
- RoHS Compliance Status: Compliance
- Securities Code: 474-8217
