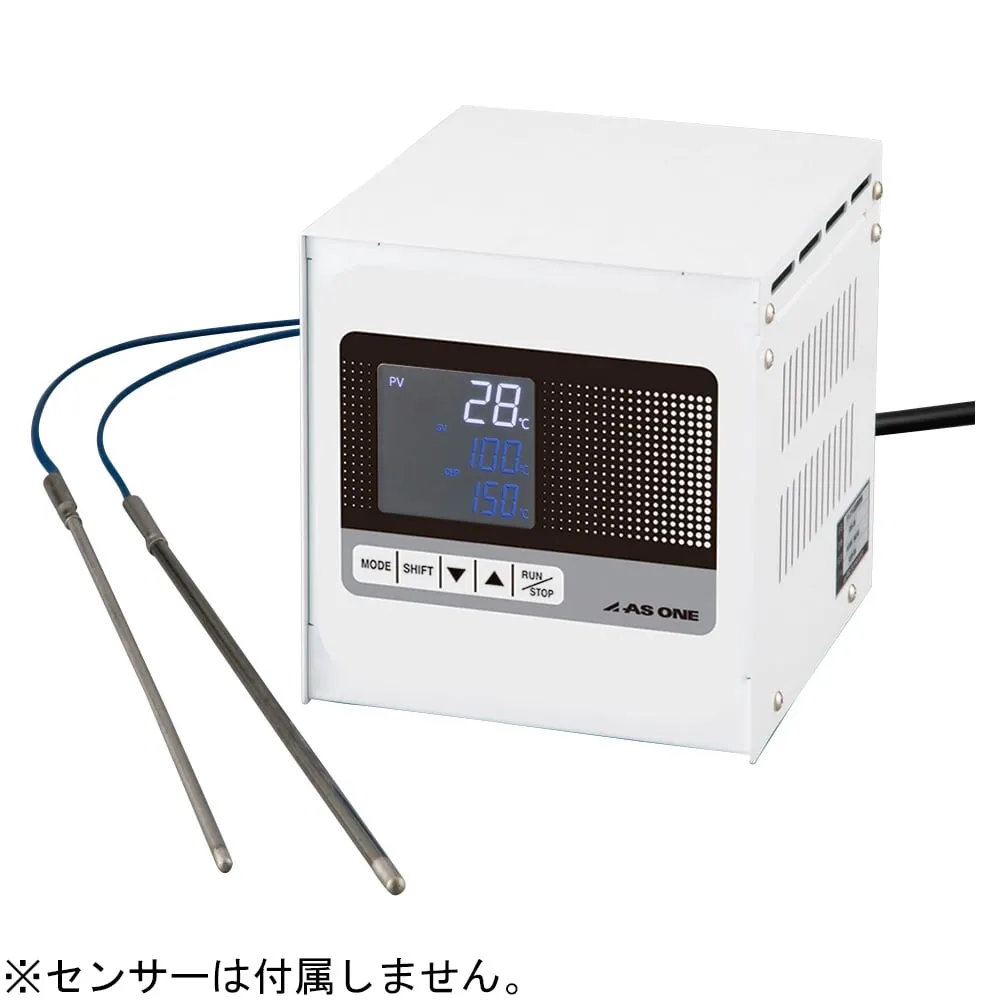

4-3763-01 Dual Temperature Controller (with Overrise Protection) TXN-15D
Product Description
Product Model: 4-3763-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-3763-01
Product Brand: AS ONE Corporation
Features
- By connecting two separately sold K thermocouples, it can be ***d for both temperature control and overrise prevention.
- An alert is output when a temperature above the overtemperature protection setting is detected.
- The output for alerts is 100 V/1 A specification, and various combinations of warning lights and buzzers are possible.
- The temperature control system is PID control, which enables high-precision temperature control.
- It has an LCD display with excellent visibility.
- This one unit integrates precision temperature control and safety to prevent excessive temperature rise!
Spec
- Setting range (deg. C): - 100 ~ 1000
- Minimum Display Units (deg. C): 1
- Number of pieces: 1
- Power supply: 100 VAC 50/60 Hz
- Capacity: 100 VAC MAX 15 A
- Temperature control method: PID control
- Output control method: Voltage output by SSR
- Power cord: About 1.8 m (3 P plug)
- Temperature indication system: +/- (0.3% + 1 digit) of input value or 4 degrees Celsius, whichever is greater
- Timer type: ON timer, OFF timer, ON/OFF timer, SV start
- Sensor Type: K Thermocouple
- Safety features: 20 A f***
- Connection terminal: control output/3 P outlet, alarm output/sensor input/M 3.5 Y terminal block
- Size: 152 x 183 x 168 mm
- Weight: approximately 1.6 kg
- *It does not come with a sensor.
